Поз.
Артикул
Описание

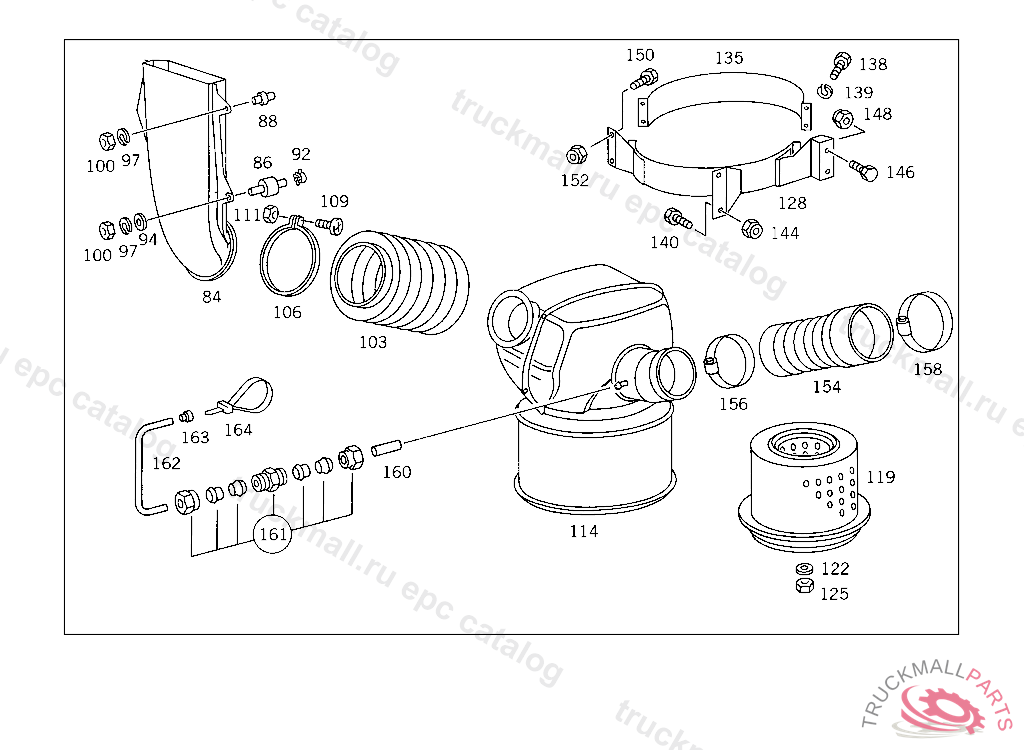

84
AIR INTAKE PIPE RIGHT, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
84
AIR INTAKE PIPE LEFT, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
86
BUFFER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
88
BUFFER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
92
NUT RETAINER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
94
WASHER EXHAUST MUFFLER TO STRAP
94
WASHER , Replaced By: N000125008443
97
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
100
NUT
103
BOOT AIR CLEANER TO CAB
106
CLAMP BOOT TO INTAKE PIPE
109
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER,5 946572
111
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
114
AIR CLEANER , Replaced By: A0140948802
114
AIR CLEANERMANN & HUMMEL,4 785295
114
AIR CLEANER , Replaced By: A0110942602
114
AIR CLEANER
114
AIR CLEANER
114
AIR CLEANER
119
FILTER ELEMENT
119
FILTER ELEMENTT0 010 094 15 02
122
WASHER FELT
125
NUT
128
SUPPORT AIR CLEANER
128
SUPPORT AIR CLEANER,4 785295
128
SUPPORT ,K 000843, Replaced By: A6505200333, +002N000961016009, +002N913004016004
128
SUPPORT AIR CLEANER,K 000844
128
SUPPORT ,K 000843, Replaced By: A6505200433, +002N000961016009, +002N913004016004
128
SUPPORT , Replaced By: A6565200033
128
SUPPORT AIR CLEANER
128
SUPPORT , Replaced By: A6565200133
135
STRAP AIR CLEANER
135
STRAP AIR CLEANER TO SUPPORT
138
SCREW BRACKET TO CROSS CONNECTION STRUT
138
SCREW , Replaced By: N304017008034
139
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
140
SCREW , Replaced By: N308676014020
140
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
144
NUT , Replaced By: N910113014001
144
NUT BRACKET TO SIDE MEMBER
146
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
146
SCREW , Replaced By: N308676012026
148
NUT SUPPORT TO SIDE MEMBER
150
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
152
NUT , Replaced By: N910113010000
152
NUT STRAP TO BRACKET
154
HOSE , Replaced By: A6205280782
154
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
154
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
156
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
156
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
156
CLAMP , Replaced By: A0059971490
158
CLAMP , Replaced By: N000000000678
158
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
158
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
160
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
160
PLASTIC PIPE RISING PIPE 4X6 MM
161
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
162
HOSE LEAK LINE, ORDER BY THE METER
163
SLEEVE LEAK LINE
164
LOOM TIE LINE MOUNTING 280 MM
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
CAP OIL REFILLING
999
CAP OIL REFILLING
