Поз.
Артикул
Описание

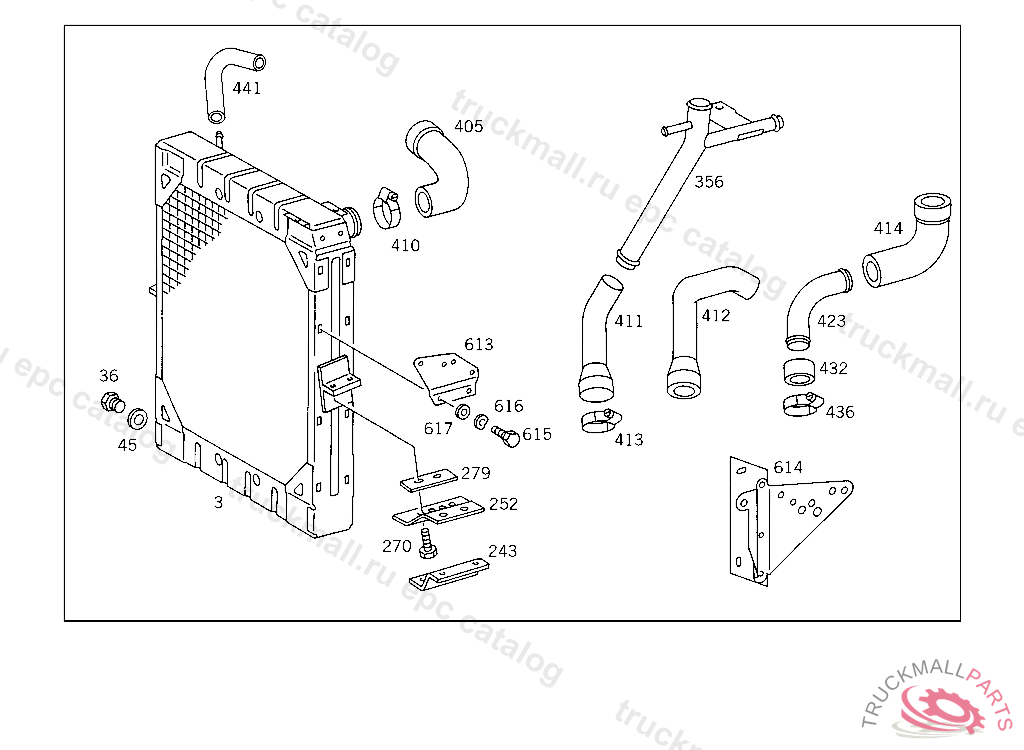

3
RADIATOR , Replaced By: A3875002903
3
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
3
RADIATOR WATER, 000-199 UP TO IDENT NO. 4 428844,200-599 UP TO IDENT NO. 4 424215
3
RADIATOR , Replaced By: A3835010301
3
RADIATOR WATER, 000-199 FROM IDENT NO. 4 428845,200-599 FROM IDENT NO. 4 424216
3
RADIATOR , Replaced By: A3815010801
3
RADIATOR WATER, 000-199 UP TO IDENT NO. 4 428844,200-599 UP TO IDENT NO. 4 424215
3
RADIATOR , Replaced By: A3815010501
3
RADIATOR , Replaced By: A3855010501
3
RADIATOR LESS TANK
3
RADIATOR , Replaced By: A3875002903
3
RADIATOR , Replaced By: A3855010401
36
SCREW PLUG , Replaced By: N007604014101
36
SCREW PLUG WATER DRAIN
45
SEAL RING FUEL LINE TO FEED PUMP
243
SUPPORT RADIATOR, 000-199 UP TO IDENT NO. 4 428844,200-599 UP TO IDENT NO. 4 424215
252
SUPPORT RADIATOR
252
SUPPORT RADIATOR
252
SUPPORT RADIATOR
270
SCREW END PIECE TO EXHAUST PIPE M 10X25
270
SCREW EXHAUST PIPE TO BRACKET
270
SCREW BRACKET TO SIDE MEMBER
270
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
270
SCREW , Replaced By: N304017010028
270
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
270
SCREW END PIECE TO EXHAUST PIPE M 10X25
279
SHIM RADIATOR TO RIGHT RUBBER MOUNTING
279
SHIM RUBBER MOUNTING TO BRACKET
279
SHIM RUBBER MOUNTING TO BRACKET
279
SHIM RADIATOR TO RIGHT RUBBER MOUNTING
356
LINE COOLING WATER,4 829878
356
LINE , Replaced By: A3815001472
356
LINE COOLING WATER
405
HOSE , Replaced By: A6175014982
405
HOSE , Replaced By: A6175014982
405
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
405
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
405
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
405
HOSE FROM RADIATOR TO THERMOSTAT
405
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
410
CLAMP HOSE 70-90X13 MM
410
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
410
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
410
CLAMP , Replaced By: N000000000674
411
HOSE FROM RADIATOR TO OIL COOLER
412
HOSE FROM RADIATOR TO OIL COOLER,4 829879
413
CLAMP HOSE 70-90X13 MM
413
CLAMP , Replaced By: N000000000674
414
HOSE FROM RADIATOR TO WATER PUMP
414
HOSE FROM RADIATOR OUTLET TO WATER PUMP
414
HOSE FROM RADIATOR TO WATER PUMP
414
HOSE FROM RADIATOR OUTLET TO WATER PUMP,4 889672
423
PIPE ELBOW FROM RADIATOR TO WATER PUMP, 415 5 014668 416 5 000515 417 4 972023
432
HOSE FROM RADIATOR TO WATER PUMP, 415 5 014668 416 5 000515 417 4 972023
436
CLAMP HOSE 70-90X13 MM
436
CLAMP , Replaced By: N000000000674
441
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
441
HOSE DE-AERATION LINE TO HEATER AND TO RADIATOR
441
HOSE VENTILATION, FROM RADIATOR TO EXPANSION TANK, 415 5 014668 416 5 000515 417 4 972023
613
BRACKET OIL DIPSTICK TO RADIATOR
614
BRACKET OIL DIPSTICK TO RADIATOR
614
BRACKET OIL DIPSTICK TO RADIATOR
615
SCREW LICENSE PLATE TO BRACKET
615
SCREW , Replaced By: N304017006020
615
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
616
SPRING WASHER LICENSE PLATE TO BRACKET
617
WASHER COMPRESSED AIR LINE TO BRACKET
617
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
617
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
999
RADIATOR
999
CLAMP , Replaced By: N916017011000
999
RADIATOR"BEHR", NOT USED
999
BRACKET OI DIPSTICK GUIDE TUBE
999
BRACKET OIL DIPSTICK TO RADIATOR
999
NUT TURNBUCKLE
999
RADIATOR ,4 428845
999
BRACKET RADIATOR MOUNTING,4 428844
999
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
999
BRACKET OIL DIPSTICK GUIDE TUBE
999
CONNECTOR AT WATER PUMP
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE FROM RADIATOR TO THERMOSTAT
999
LINE HEATING AND BREATHING
999
FLANGE ENGINE BREATHING
999
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
999
HOSE DE-AERATION, FROM FLANGE TO COOLING WATER EXPANSION TANK
