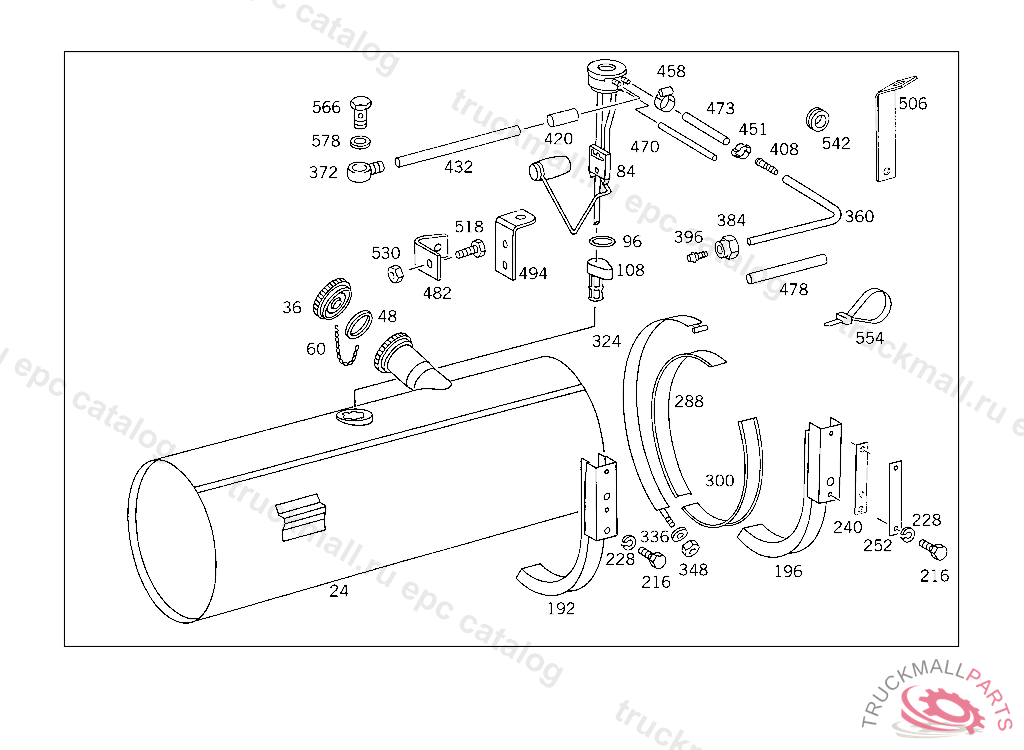

Поз.
Артикул
Описание
96
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
108
FUEL STRAINER FUEL TANK,K 169122
216
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
228
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
336
WASHER
348
NUT STRAP TO SUPPORT,5 149419
360
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
372
BANJO UNION FEED
408
SLEEVE FEED
408
CONNECTOR RIGHT,177-LITER
420
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
432
HOSE LEAK LINE
451
CLAMP LINE MOUNTING
458
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
458
CLAMP , Replaced By: N000000000665
470
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
473
HOSE FROM WARNING INDICATOR TO AIR CLEANER, ORDER BY THE METER
478
HOSE LEAK LINE, ORDER BY THE METER
554
LOOM TIE LINE MOUNTING 280 MM
554
LOOM TIE LINE MOUNTING
566
HOLLOW SCREW FUEL LINE TO FEED PUMP
566
HOLLOW SCREW , Replaced By: N915036010108
578
SEAL RING FUEL LINE TO FEED PUMP
999
FITTING RETURN
999
UNION NUT RETURN
999
SLEEVE LEAK LINE
