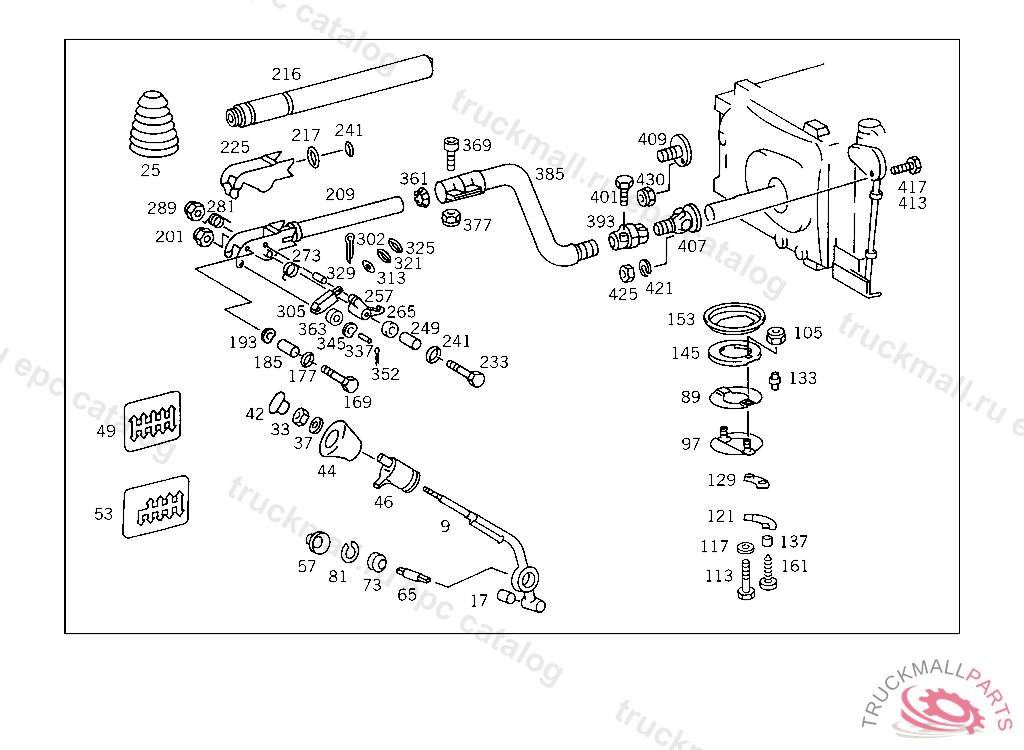

Поз.
Артикул
Описание
9
SHIFT LEVER REMOTE GEARSHIFT MECHANISM,4 291253
9
SHIFT LEVER REMOTE GEARSHIFT MECHANISM,4 291252
17
BUSHING PAWL TO ROD END,5 443047
25
BOOT SHIFTING LEVER
33
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
37
WASHER RADIATOR TO RUBBER MOUNTING
37
WASHER , Replaced By: N000125010532
42
COVER
42
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
49
GUMMED LABEL NINE-SPEED,ASHTRAY,5 032516
57
BOOT SHIFT LEVER BEARING
57
BOOT , Replaced By: A6202680196
65
PIN SHIFT LEVER BEARING,K040603
73
JOINT BEARING SHIFT LEVER BEARING,K040603
73
JOINT BEARING SHIFT LEVER BEARING,K040603
73
JOINT BEARING , Replaced By: A0019813931
81
LOCK RING SHIFT LEVER BEARING
89
BRACKET SHIFT LEVER UPPER PART,K040603
97
BRACKET SHIFT LEVER LOWER PART,K040603
105
NUT , Replaced By: N913004008001
105
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
105
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
113
SCREW , Replaced By: N304017008018
113
SCREW SUPPORT TO FENDER
121
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
129
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
137
TUBE. BUSHING CAB FLOOR COVERING
145
RUBBER PAD SHIFT LEVER TO CAB FLOOR,K040603
153
BRACKET BOOT
161
SHEET METAL SCREW BRACKET TO CAB
169
SCREW , Replaced By: N000933010192
169
SCREW SHIFTING ROD TO SHIFT LEVER
177
ROUND CORD RING. SEAL RING ROD END
185
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
193
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
201
NUT , Replaced By: N910113010000
201
NUT STRAP TO BRACKET
209
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
209
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
216
SHIFTING TUBE (TELESCOPIC TUBE)
216
SHIFTING TUBE (TELESCOPIC TUBE)
216
SHIFTING TUBE (TELESCOPIC TUBE)
217
SEAL RING HYDRAULIC RELEASE
225
ROD END HYDRAULIC RELEASE
233
SCREW SHIFTING ROD TO SHIFT LEVER
233
SCREW , Replaced By: N000933010192
241
ROUND CORD RING. SEAL RING ROD END
249
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
257
PAWL SHIFTING ROD,5 443048
257
PAWL ,5 4430475 443048, Replaced By: A6202600087, +001A6202680150
265
BUSHING PAWL TO ROD END,5 443047
273
SPRING ROD END
281
SPRING ROD END
289
NUT STRAP TO BRACKET
289
NUT , Replaced By: N910113010000
302
COTTER PIN PAWL TO ROD END
305
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
305
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
313
SEAL RING PISTON RINGS WABCO
321
SEAL RING SCREW FITTING WABCO
325
SEAL RING OUTSIDE WABCO
329
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
329
PIN , Replaced By: N001444008235
337
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
345
SPRING WASHER SHIFTING CYLINDER TO YOKE
352
COTTER PIN LEVER TO ROD
352
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
361
WASHER BETWEEN THE SHIFTING RODS
369
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
377
NUT STRAP TO BRACKET
377
NUT , Replaced By: N910113010000
385
SHIFTING ROD
385
SHIFTING ROD REAR
393
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
393
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
401
SCREW CONNECTOR TO REAR SHIFTING ROD
401
SCREW CONNECTOR TO REAR SHIFTING ROD
401
SCREW CONNECTOR TO REAR SHIFTING ROD
401
SCREW , Replaced By: N304017010047
407
JOINT SHIFTING ROD TO TRANSMISSION
407
JOINT SHIFTING ROD TO TRANSMISSION
407
JOINT SHIFTING ROD TO TRANSMISSION
407
JOINT SHIFTING ROD TO TRANSMISSION
407
JOINT SHIFTING ROD TO TRANSMISSION
413
SCREW CLAMP TO BRACKET AND TO PIPE
413
SCREW SHIFTING ROD TO TRANSMISSION
413
SCREW SHIFTING ROD TO TRANSMISSION
421
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
425
NUT
425
NUT
999
YOKE CONNECTOR
999
WASHER LEVER TO BRACKET 30X10.5X4 MM
999
WASHER , Replaced By: A4039900040
999
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
999
SHIFTING ROD
999
BUSHING PAWL TO ROD END,5 443048
999
BUSHING PAWL TO ROD END,5 443048
999
SCREW , Replaced By: N304014010004
999
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
