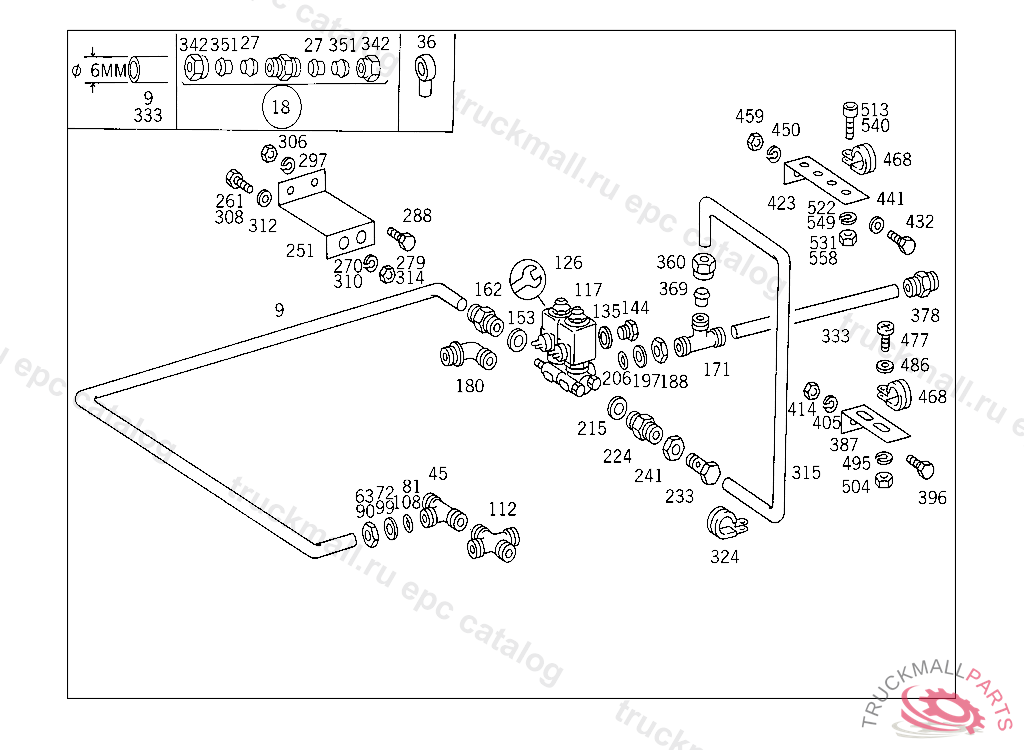

Поз.
Артикул
Описание
9
PLASTIC PIPE RISING PIPE 4X6 MM
9
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
18
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
27
SLEEVE LINE CONNECTION
27
SLEEVE , Replaced By: N915062006000
36
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
36
BANJO UNION , Replaced By: N915052004006
45
T-FITTING
45
T-FITTING ,4 412020
45
T-FITTING FITTING,5 461950
63
NUT CHECK VALVE TO AIR RESERVOIR
72
THRUST RING CHECK VALVE TO AIR RESERVOIR
72
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
81
O-RING CHECK VALVE TO AIR RESERVOIR
81
SEALING CORD
90
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
99
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
108
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
112
DISTRIBUTOR
117
VALVE
117
VALVE , Replaced By: A0002602557
117
VALVE P.T.O.
117
VALVE P.T.O.
117
VALVE , Replaced By: A0002608057
117
VALVE , Replaced By: A0019971936
117
VALVE , Replaced By: A0002608057
117
VALVE P.T.O.
117
VALVE P.T.O.
117
VALVE , Replaced By: A0002607957
117
VALVE , Replaced By: A0002607957
126
REPAIR KITTO 001 997 34 36,002 997 58 36,
126
REPAIR KITTO 001 997 34 36,002 997 58 36,
126
REPAIR KIT , Replaced By: A0012608357
126
REPAIR KITHERION,94171034/0711/24V,94172034/0711
126
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
126
MAGNET , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
126
SPRING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
126
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
126
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
126
VALVE DISC , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A0005862626
135
SEAL RING LINE CONNECTION
144
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
144
SCREW PLUG , Replaced By: N000908012009
153
SEAL RING LINE CONNECTION
162
TS DOUBLE FITTING SOLENOID VALVE
162
FITTING , Replaced By: A0029906071
162
FITTING , Replaced By: A0039979072
162
DOUBLE FITTING , Replaced By: A0019972872
171
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
180
ELBOW FITTING CAB FLOOR
180
FITTING OIL LINE CONNECTION
188
NUT
197
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
197
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
206
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
215
SEAL RING LINE CONNECTION
224
SCREW-IN FITTING LINE CONNECTION
224
FITTING AT BRAKE CYLINDER, 674067
224
FITTING , Replaced By: N074313010100
224
FITTING LINE CONNECTION
224
FITTING LINE CONNECTION, Replaced By: N000000006446
224
FITTING , Replaced By: A0019972572
233
HOLLOW SCREW HEATING CONNECTION
241
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
251
BRACKET
261
SCREW CONNECTOR
270
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
279
NUT BALL PIVOT TO LEVER
288
SCREW BRACKET TO SIDE MEMBER
288
SCREW , Replaced By: N304017010002
288
SCREW END PIECE TO EXHAUST PIPE M 10X25
297
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
297
LOCK WASHER , Replaced By: N912004010102
306
NUT BRACKET TO SUPPORT AND TO END PIECE
308
SCREW LICENSE PLATE TO BRACKET
308
SCREW , Replaced By: N304017006020
310
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
312
WASHER COMPRESSED AIR LINE TO BRACKET
312
WASHER , Replaced By: N009021006208
314
NUT BALL PIVOT TO LEVER
315
HOSE ,4 195522
315
HOSE , Replaced By: N071435006002
315
HOSE , Replaced By: A3205730136
315
HOSE
324
CLAMP
333
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
333
LINE , Replaced By: A0004296201
342
UNION NUT
351
SEAL CONE
351
GLAND , Replaced By: A0019901667
360
UNION NUT LINE CONNECTION
360
UNION NUT , Replaced By: N915017008100
369
GLAND LINE CONNECTION
378
FITTING , Replaced By: A0039979072
378
DOUBLE FITTING , Replaced By: A0019972872
378
TS DOUBLE FITTING SOLENOID VALVE
378
FITTING , Replaced By: A0029906071
387
BRACKET OIL LINE MOUNTING
387
BRACKET
387
BRACKET , Replaced By: A3464296040
387
BRACKET AT CYLINDER BLOCK, REAR
396
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
396
SCREW END PIECE TO EXHAUST PIPE M 10X25
405
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
405
LOCK WASHER , Replaced By: N912004010102
414
NUT BRACKET TO SUPPORT AND TO END PIECE
423
BRACKET OIL LINE MOUNTING
432
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
441
WASHER COMPRESSED AIR LINE TO BRACKET
441
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
450
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
459
NUT BALL PIVOT TO LEVER
459
NUT COVER PLATE
459
NUT
468
CLAMP
468
CLAMP DELIVERY AND SUCTION LINES TO STEERING
468
CLAMP , Replaced By: A6739950001
468
CLAMP LINE MOUNTING
468
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
468
CLAMP LINE MOUNTING
477
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
486
WASHER COMPRESSED AIR LINE TO BRACKET
486
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
495
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
504
NUT BALL PIVOT TO LEVER
513
SCREWM 5X20
522
LOCK WASHER BRACKET TO STEERING COLUMN END
522
LOCK WASHER
531
NUT IN CASE OF SUBSEQUENT INSTALLATION
531
NUT , Replaced By: N304032005005
540
SCREWM 5X20
549
LOCK WASHER BRACKET TO STEERING COLUMN END
558
NUT IN CASE OF SUBSEQUENT INSTALLATION
558
NUT , Replaced By: N304032005005
999
T-FITTING
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 24X1,5 129167
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
999
WASHER PRESSURE SWITCH SCREW-CONNECTION TO M 24X1,5 129167
999
EXPANSION PLUG TO PLUG THE FREE BORES IN INSTRUMENT PANEL
999
PLUG TO PLUG THE FREE HOLES FOR TELL-TALE LAMP
999
TELL-TALE LAMP , Replaced By: A0005451630, +001A0005452319
999
BRACKET
999
ELECTRIC CABLE REAR AXLE DIFFERENTIAL LOCK
999
BRACKET
