Главная
›
Mercedes
›
TRUCK
›
1928A/K,1935 A,1936 A 2228 A,2528 A,2535 A
›
621.215
›

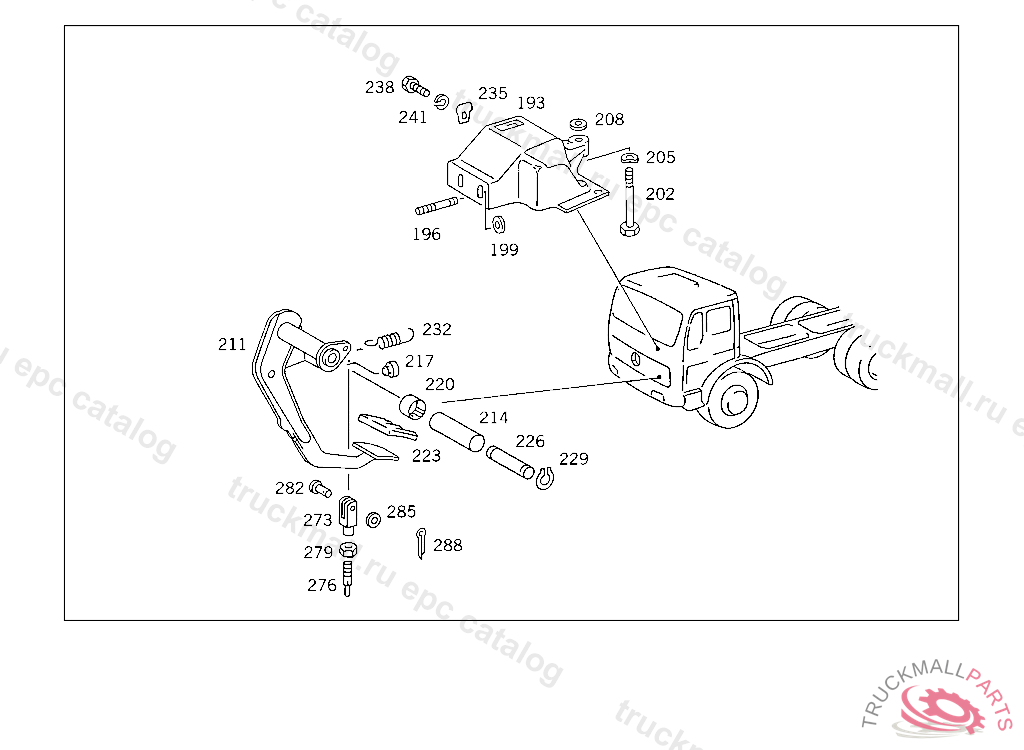

26 TRANSMISSION
›
001 GEARSHIFT,TRANSMISSION IL.5
Mercedes N304017006018 - Болт
1928A/K,1935 A,1936 A 2228 A,2528 A,2535 A 621.215
26 TRANSMISSION - 001 GEARSHIFT,TRANSMISSION IL.5
Поз.
Артикул
Описание
193
A3812941001
BEARING BRACKET BRAKE
196
N000939008136
STUD BOLT BRACKET TO CROSS MEMBER
199
N007349008003
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
202
N000931010272
SCREW CLUTCH TO FLYWHEEL
205
N000137010201
SPRING WASHER STEERING COLUMN BRACKET TO CAB
208
A4039900040
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
211
A6202900818
PEDAL BRAKE
214
A3852920053
SPACER TUBE
217
A1152910186
STOP
220
A0119813410
NEEDLE BEARING
223
A1072910182
PAD BRAKE
226
A3852940007
PIVOT PIN PEDAL TO BEARING BRACKET
229
N000471020001
LOCK RING
232
A3879935010
SPRING BRAKE PEDAL RELEASE SPRING
235
A6732920073
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
238
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
238
N000933006103
SCREW , Replaced By: N304017006018
241
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
273
A6209960001
YOKE OPERATING ROD,K 202311
276
A9702900039
ROD PISTON ROD AND PUSH ROD
276
A3852950133
ROD , Replaced By: A9702900039
279
N304035008001
NUT
279
N000439008211
NUT , Replaced By: N304035008001
282
A3852920174
PIN ROD TO BRAKE PEDAL
285
N000433008406
WASHER BRACKET TO CROSS MEMBER
288
N000094002060
COTTER PIN LEVER TO ROD
288
N000094002059
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
