Mercedes A4039920001 - Втулка

1935 AK,1936 A/AK,1945 A/AF/F,2436,2536/A,AK,K 621.327

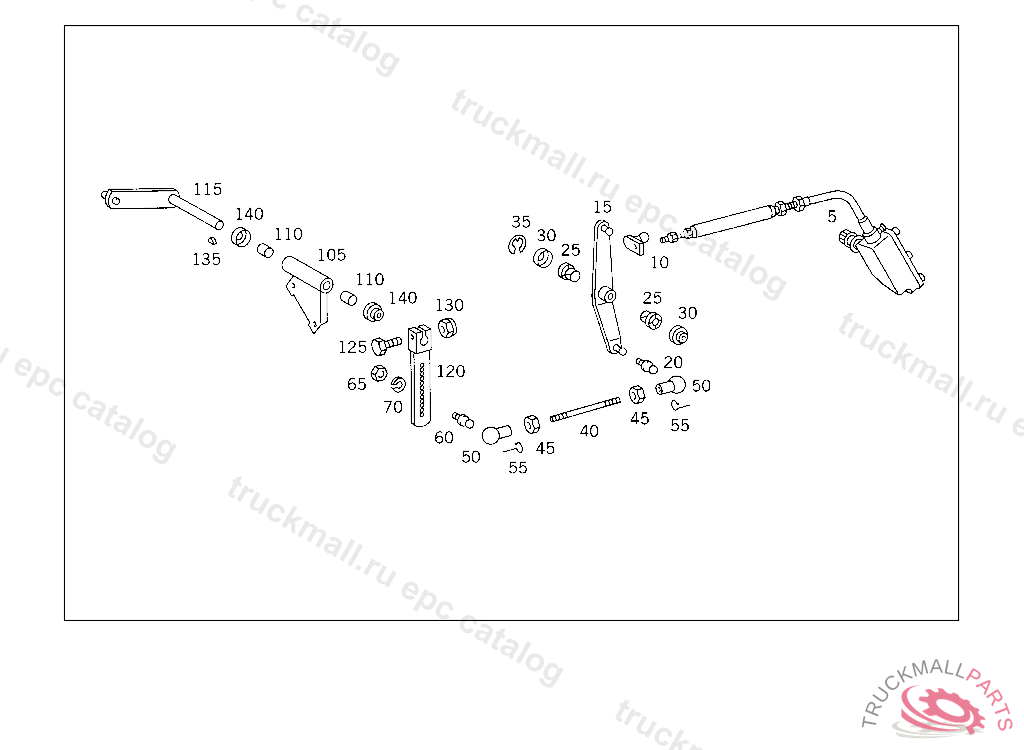

30 CONTROL - 001 MECHANICAL MODULATOR IL.1

Поз.
Артикул
Описание
5
A0003000762
MODULATOR
10
A6253000140
BRACKET MODULATOR
15
A6253000428
LEVER MODULATOR
20
N071803010201
BALL PIVOT
25
A3813020050
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
30
A6153010088
COVERING INTERMEDIATE BEARING
35
N006799010001
LOCK PLATE INTERMEDIATE BEARING
40
N900331006616
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
45
N000934006007
NUT BALL PIVOT TO LEVER
50
N071805010204
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
55
N071805010403
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
60
N000000004467
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
60
N071803010301
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
65
N000934006007
NUT BALL PIVOT TO LEVER
70
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
105
A6253000240
BRACKET MOUNTING
110
A4039920001
BUSHING MOUNTING
115
A6253000120
SHAFT MOUNTING
120
A6253000528
LEVER MOUNTING
125
N000931006118
SCREW CONNECTOR
130
N913004006001
NUT PUMP TO BRACKET
130
N913004006002
NUT , Replaced By: N913004006001
135
N006888004012
WOODRUFF KEY
140
A6153010088
COVERING INTERMEDIATE BEARING
