Mercedes N304032006004 - Гайка / mutter

1935 AK,1936 A/AK,1945 A/AF/F,2436,2536/A,AK,K 621.327

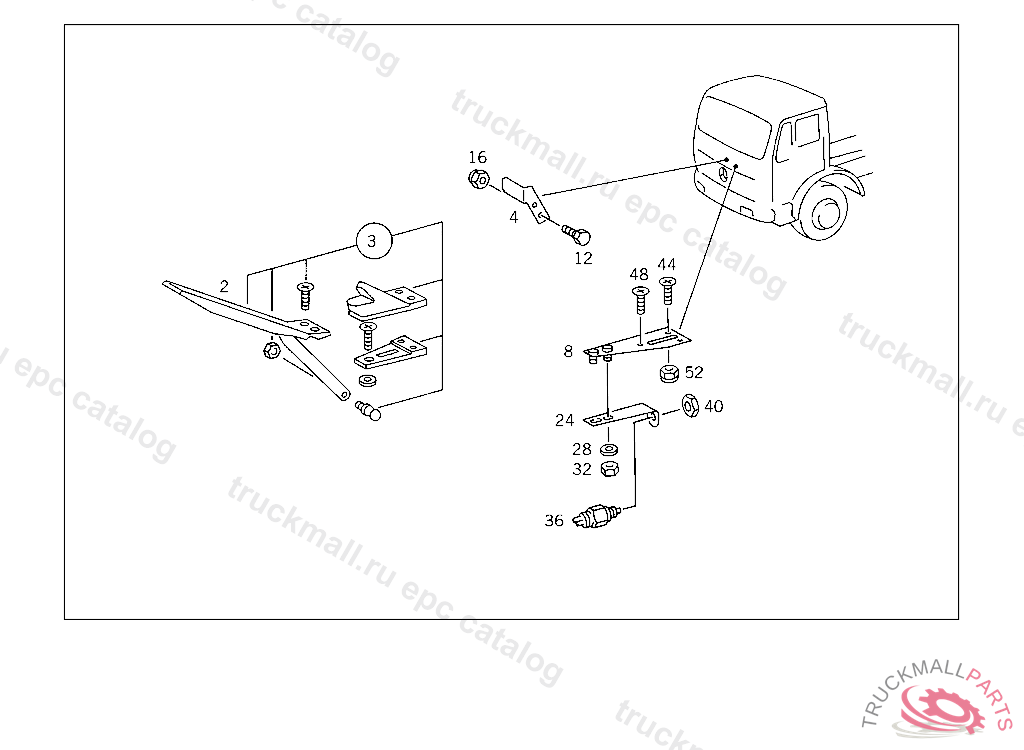

30 CONTROL - 001 INSTALLATION OF IDLE SWITCH

Поз.
Артикул
Описание
2
A6243000104
ACCELERATOR PEDAL , Replaced By: A6243000304
2
A6153000004
ACCELERATOR PEDAL , Replaced By: A6243000104
3
A6243000304
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
4
A6243010144
ANGLE ACCELERATOR PEDAL
8
A6243000040
BRACKET IDLING SWITCH
12
N000933006102
SCREW COVER PLATE TO BRACKET
16
N910113006001
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
16
N913004006003
NUT , Replaced By: N910113006001
24
A6243010444
ANGLE IDLING SWITCH
28
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
28
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
32
N304032006004
NUT SPRING-LOADED PUSH ROD
32
N000934006000
NUT , Replaced By: N304032006004
36
A0015459414
SWITCH CONTROL SHAFT
40
N308675014001
NUT JOINT TO BRACKET
40
N000439014203
NUT , Replaced By: N308675014001
44
N000965006077
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
48
N000965006040
SCREW PEDAL TO CAB FLOOR
52
N910113006001
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
52
N913004006003
NUT , Replaced By: N910113006001
999
A6153000104
PAD ACCELERATOR PEDAL
999
A6553010093
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
N007991005007
SCREW ACCELERATOR PEDAL
