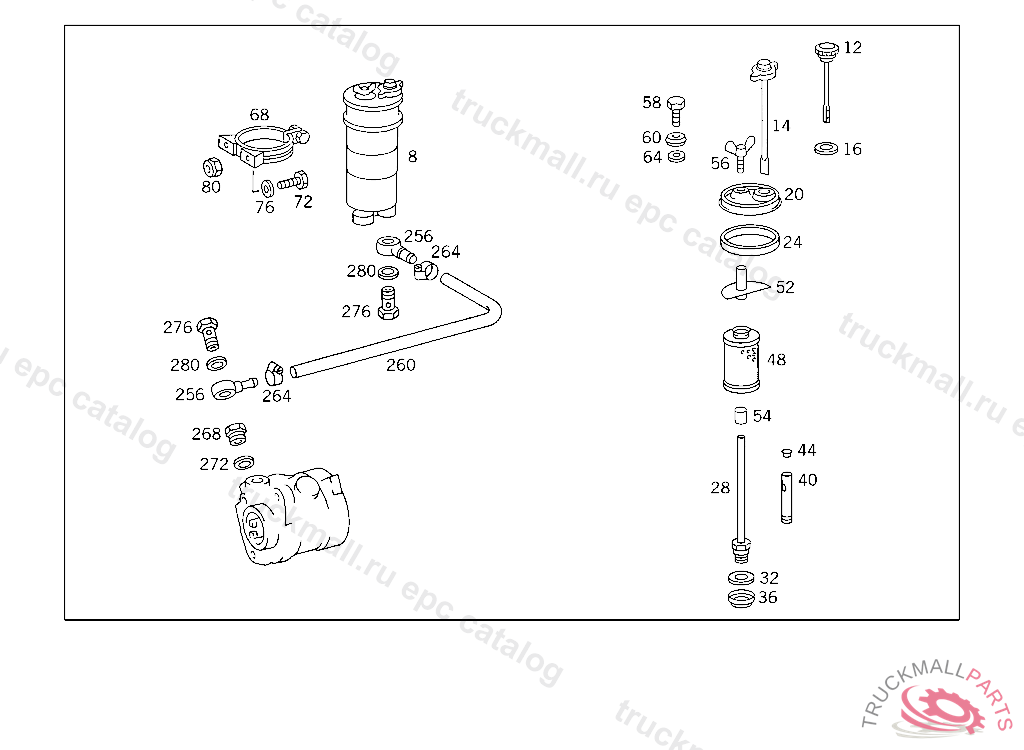

Поз.
Артикул
Описание
8
TANK OIL
8
TANK , Replaced By: A0004666802
8
TANK OIL, 005,009 5 399648 015,018,019,025,028,029 5 401091, EXCEPT 5 400444
12
FILLER CAPTO 000 466 47 02
14
OIL DIPSTICK OIL TANK
16
GASKET , 993034
20
COVER OIL TANK
20
COVER , Replaced By: A0004661705
20
COVERTO 000 466 47 02
24
SEAL RINGTO 000 466 38 02
24
GASKET , 993034
24
GASKET , Replaced By: A0004660580
28
PIPETO 000 466 47 01
32
SPRING , 993034
36
VALVE DISC , 993034
40
PIPETO 000 466 47 02
44
EXPANSION PLUG ENGINE LEFT AND RIGHT SUPPORTS
48
FILTER , 993034
52
SPACER TUBETO 000 466 47 02
54
RUBBER SLEEVETO 000 466 38 02
56
SCREW OIL TANK
58
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
58
SCREW , Replaced By: N304017008016
60
WASHERTO 000 466 47 02
64
WASHER , 993034
68
CLAMP OIL TANK TO BRACKET
72
SCREW PIPE CLAMP
72
SCREW , Replaced By: N304017008021
76
WASHER EXHAUST MUFFLER TO STRAP
76
WASHER , Replaced By: N000125008443
80
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
NUT , Replaced By: N913004008001
256
BANJO UNION. LINE (SUCTION LINE),FROM OIL TANK TO PUMP
256
LINE , Replaced By: A6254607388
260
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
260
HOSE , Replaced By: A3859971582
264
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
264
CLAMP , Replaced By: N000000000667
268
FITTING POWER STEERING PUMP TO BEARING FLANGE
272
SEAL RING POWER STEERING PUMP TO BEARING FLANGE
276
HOLLOW SCREW SUCTION LINE TO OIL PUMP
280
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
