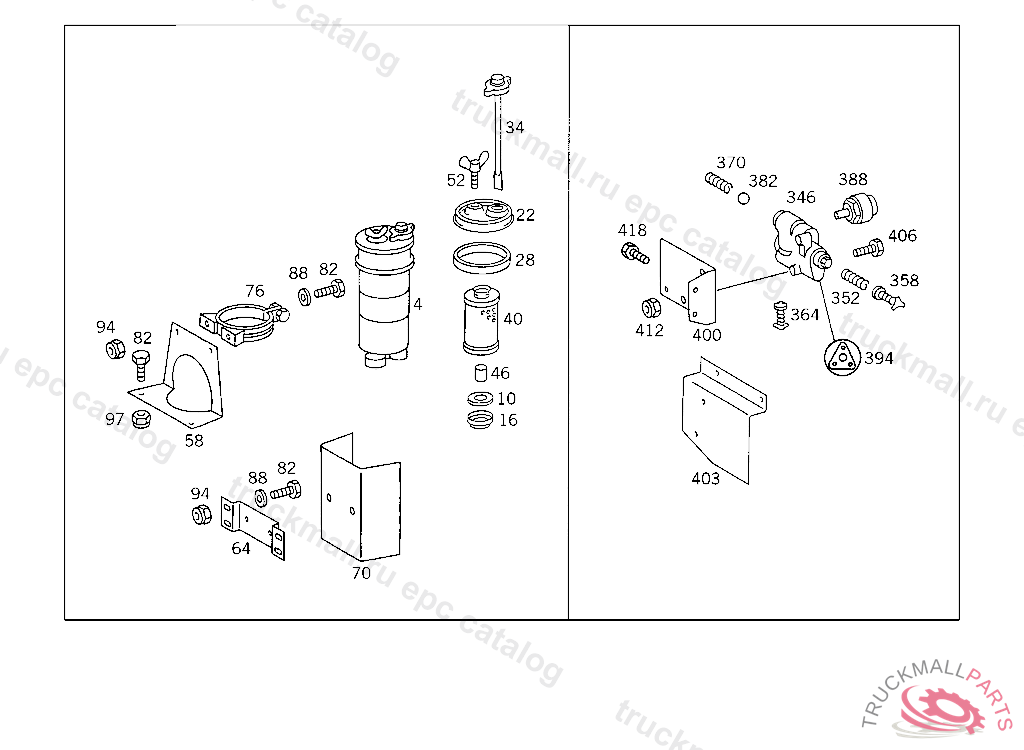

Поз.
Артикул
Описание
4
TANK OIL
4
TANK , Replaced By: A0004666802
10
SPRING , 993034
16
VALVE DISC , 993034
22
COVER OIL TANK
28
SEAL RINGTO 000 466 38 02
34
OIL DIPSTICK OIL TANK
40
FILTER , 993034
46
RUBBER SLEEVETO 000 466 38 02
52
SCREW OIL TANK
58
BRACKET OIL TANK
64
SUPPORT OIL TANK
70
COVER PLATE OIL TANK
76
CLAMP OIL TANK TO BRACKET
82
SCREW PIPE CLAMP
82
SCREW PIPE CLAMP
82
SCREW PIPE CLAMP
82
SCREW , Replaced By: N304017008021
88
WASHER , Replaced By: N000125008443
88
WASHER EXHAUST MUFFLER TO STRAP
88
WASHER EXHAUST MUFFLER TO STRAP
94
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
94
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
94
NUT , Replaced By: N913004008001
97
NUT STRAP TO BRACKET
346
VALVE (CUT-IN VALVE),AT FRAME SIDE MEMBER IN FRONT OF STEERING BOX, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
352
SPRING
358
VALVE
364
VALVE
370
SPRING
382
BALL
388
INDICATOR , Replaced By: A0105429317
388
SENDER UNIT STEERING FAILURE
394
GASKET KIT VALVE
400
BRACKET CUT-IN VALVE
403
BRACKET CUT-IN VALVE
406
SCREW VALVE TO BRACKET
412
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
412
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
418
SCREW , Replaced By: N304017010043
418
SCREW BRACKET TO CONSOLE
