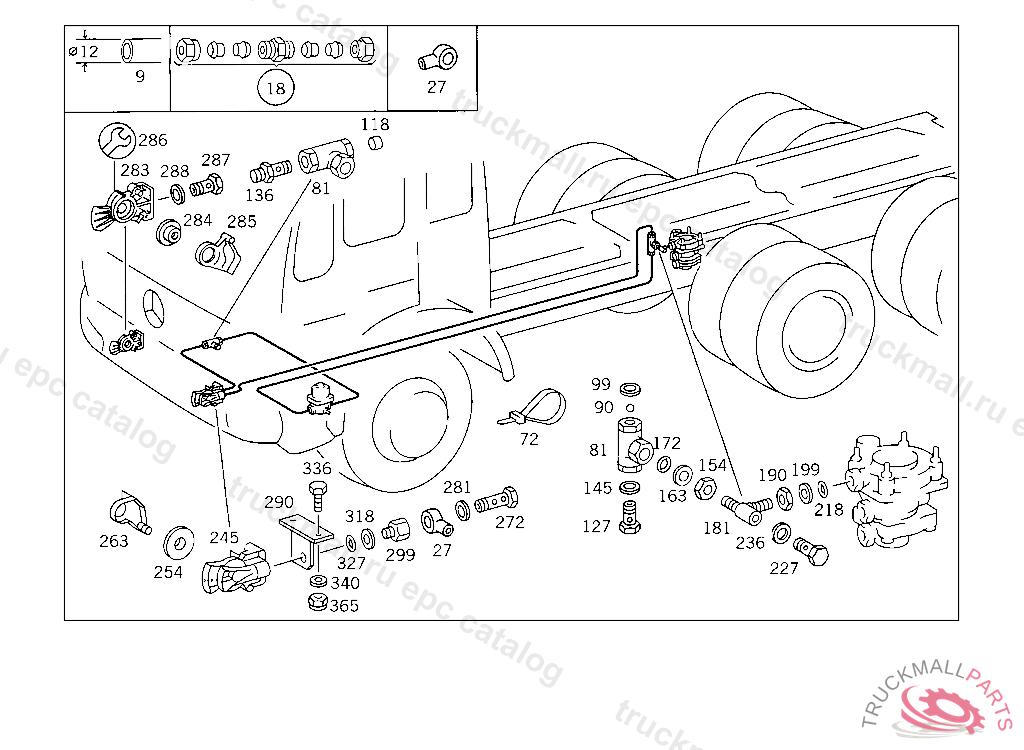

Поз.
Артикул
Описание
9
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
9
HOSE , Replaced By: A0009872827
18
FITTING , Replaced By: A0029906171
18
FITTING (PARTS KIT),LINE RUPTURE
27
BANJO UNION , Replaced By: N915052009009
27
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
27
BANJO UNION DE-AERATION LINE TO COOLING WATER LINE
72
LOOM TIE LINE MOUNTING
72
LOOM TIE LINE MOUNTING 280 MM
81
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
81
VALVE TWO-WAY VOSS
81
VALVE TWO-WAY
81
VALVE TWO-WAY
81
VALVE TWO-WAY
81
VALVE TWO-WAY
81
VALVE TWO-WAY
90
BALLTO 003 429 22 44
99
GASKETTO 003 429 22 44
118
VALVE , Replaced By: A0004291182
118
VALVE BODYTO 002 429 95 44
118
VALVE BODYTO 002 429 95 44
127
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
136
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
145
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
154
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
163
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
172
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
181
FITTING RELAY VALVE,CONNECTION "20",LEFT
190
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
199
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
218
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
227
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
236
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
245
BRAKE LINE COUPLING BRAKE,YELLOW "KNORR"
245
BRAKE LINE COUPLING BRAKE,YELLOW "WABCO"
245
BRAKE LINE COUPLING BRAKE,YELLOW WESTINGHOUSE
245
BRAKE LINE COUPLING BRAKE,YELLOW WESTINGHOUSE
254
SEAL RING"WABCO"
263
COVER"WABCO", NOT USED
272
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
272
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
281
SEAL RING FUEL LINE TO FEED PUMP
281
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
283
BRAKE LINE COUPLING SUPPLY "KNORR"
283
BRAKE LINE COUPLING SUPPLY "WABCO"
284
SEAL RING"WABCO"
285
COVER"WABCO", NOT USED
286
REPAIR KIT"KNORR"
287
HOLLOW SCREW , Replaced By: N915036010108
287
HOLLOW SCREW FUEL LINE TO FEED PUMP
288
SEAL RING FUEL LINE TO FEED PUMP
290
BRACKET BRAKE LINE COUPLING
299
ADAPTER FITTING BRAKE LINE COUPLING TO BRACKET
299
ADAPTER FITTING , Replaced By: A0069970072
299
FITTING SHUTTLE VALVE,CONNECTION: "20",5 434013
318
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
327
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
336
SCREW PIPE CLAMP
336
SCREW BRACKET TO CROSS CONNECTION STRUT
336
SCREW , Replaced By: N304017008034
336
SCREW , Replaced By: N304017008021
340
WASHER BRACKET TO LEFT SIDE MEMBER
340
WASHER , Replaced By: N009021008213
365
NUT , Replaced By: N913004008001
365
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
COVER BRAKE,YELLOW "WABCO"
999
PISTONVOSS
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
BANJO UNION FROM BULKHEAD FITTING TO PRESSURE REGULATOR
999
REPAIR KIT BRAKE LINE COUPLING "WABCO"
999
REPAIR KIT BRAKE LINE COUPLING "KNORR"
999
BRACKET BRAKE LINE COUPLING
999
BRACKET OVERFLOW VALVE,CONNECTION: "10"
999
BRACKET OVERFLOW VALVE,CONNECTION: "20"
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
999
SHEET METAL SCREW , Replaced By: N007983004333
999
SHEET METAL SCREW BRACKET TO CAB
