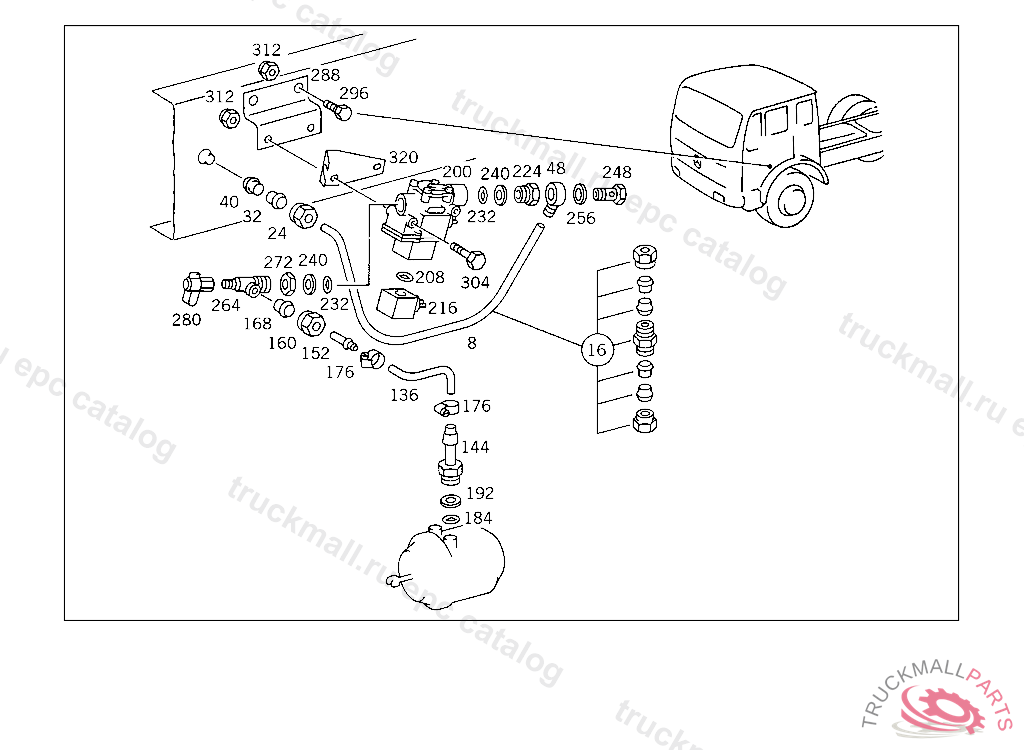

Поз.
Артикул
Описание
8
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
8
HOSE , Replaced By: A0009872827
16
FITTING (PARTS KIT),LINE RUPTURE
16
FITTING , Replaced By: A0029906171
24
UNION NUT LINE CONNECTION
24
UNION NUT LINE CONNECTION, Replaced By: N000000006239
32
GLAND , Replaced By: A0019901967
32
SEAL CONE LINE CONNECTION
40
SLEEVE LINE CONNECTION
48
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
48
BANJO UNION , Replaced By: N915052009009
136
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
144
FITTING DIAPHRAGM CYLINDER,CONNECTION:
152
FITTING DIAPHRAGM CYLINDER,CONNECTION:
160
UNION NUT LINE CONNECTION, Replaced By: N000000006239
160
UNION NUT LINE CONNECTION
168
GLAND , Replaced By: A0019901967
168
SEAL CONE LINE CONNECTION
176
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
176
CLAMP HOSE TO FITTING AND TO OIL TANK
184
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
192
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
200
VALVE , REPAIR IMPOSSIBLE, Replaced By: A0044293444
200
VALVE REGULATING SOLENOID VALVE "KNORR", REPAIR IMPOSSIBLE
200
VALVE , Replaced By: A0044295944
200
VALVE (SOLENOID VALVE) "BOSCH", REPAIR IMPOSSIBLE
200
VALVE , REPAIR IMPOSSIBLE, Replaced By: A0044296144
200
VALVE , Replaced By: A0044296044
200
VALVE REGULATING SOLENOID VALVE "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
208
SEAL RING , NOT USED
216
VALVE
224
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
232
O-RING CHECK VALVE TO AIR RESERVOIR
240
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
240
THRUST RING CHECK VALVE TO AIR RESERVOIR
248
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
256
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
264
T-FITTING FRONT AXLE,CONNECTION: "20"
272
NUT CHECK VALVE TO AIR RESERVOIR
280
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
280
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
280
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
280
TEST CONNECTION
288
BRACKET FRONT AXLE REGULATING SOLENOID VALVE
296
SCREW , Replaced By: N304017008027
296
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
304
SCREW FRONT AXLE REGULATING SOLENOID VALVE
304
SCREW , Replaced By: N000933008134
312
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
312
NUT , Replaced By: N913004008001
320
LOCK FRONT AXLE,LEFT,K 009079
320
LOCK FRONT AXLE,RIGHT,K 009080
999
SEAL RINGWABCO
999
BRACKET DIAPHRAGM CYLINDER,5 434013
999
COVERING 2/2-WAY VALVE
999
SCREW AT SIDE MEMBER,REAR M 8X135
999
SCREW , Replaced By: N304017008034
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
HOLLOW SCREW HEATING CONNECTION
999
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
