Главная
›
Mercedes
›
BUS
›
O 530 N3 LANG EURO 3
›
628.143
›
47 FUEL SYSTEM
›

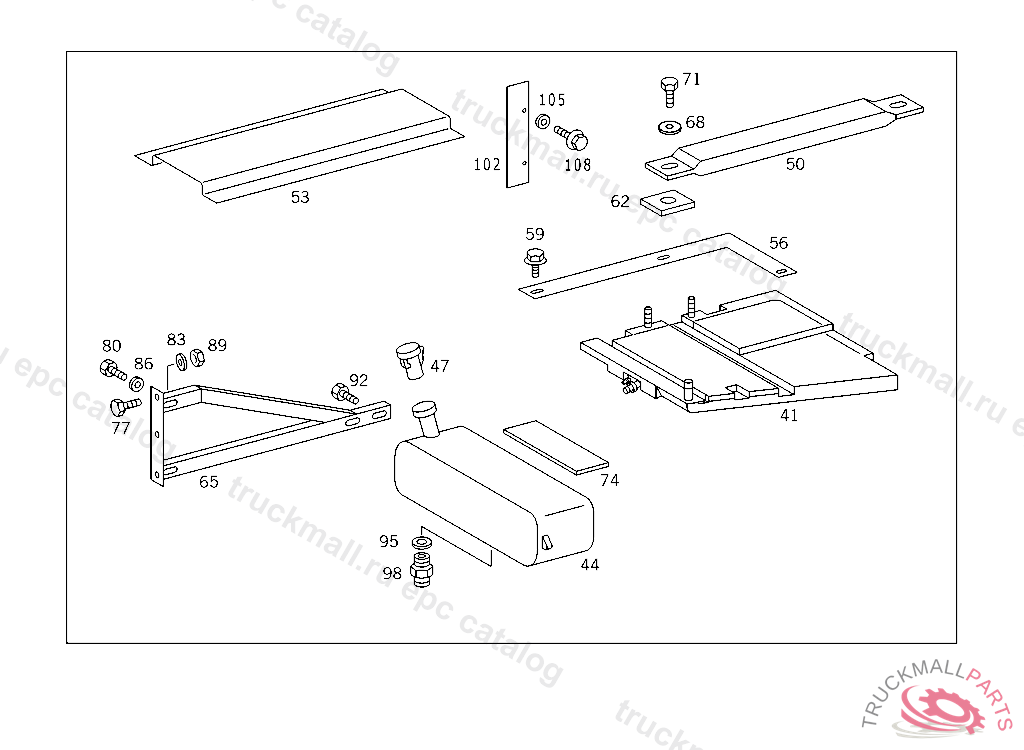

240 FUEL-OIL LINES AND TANK IL. 2
Mercedes A6284750029 - Platte
O 530 N3 LANG EURO 3 628.143
47 FUEL SYSTEM - 240 FUEL-OIL LINES AND TANK IL. 2
Поз.
Артикул
Описание
41
A6284705601
FUEL TANK55 L
41
A6284707701
FUEL TANK55L
50
A6284750301
SUPPORT
53
A6284750046
PROTECTIVE PLATE
56
A6284750146
PROTECTIVE PLATE
59
N910105005000
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
62
A6284750029
THRUST PLATE
68
N009021010102
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
71
N304017010046
SCREW BRACKET TO FRAME
102
A6284710587
COVERING , NOT USED
105
N009021010209
WASHER BRACKET TO COVERING
108
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
999
A0004700492
FILTER ELEMENT
999
A0004710143
FILTER ELEMENT
999
A0004711980
GASKET23X15X3
999
A0004712180
GASKET14X22
999
A0004712280
GASKET22X18X1,5
999
A0004712380
SEAL F FILLER NECK. GASKET
999
A0269971848
SEAL RING
