Поз.
Артикул
Описание
10

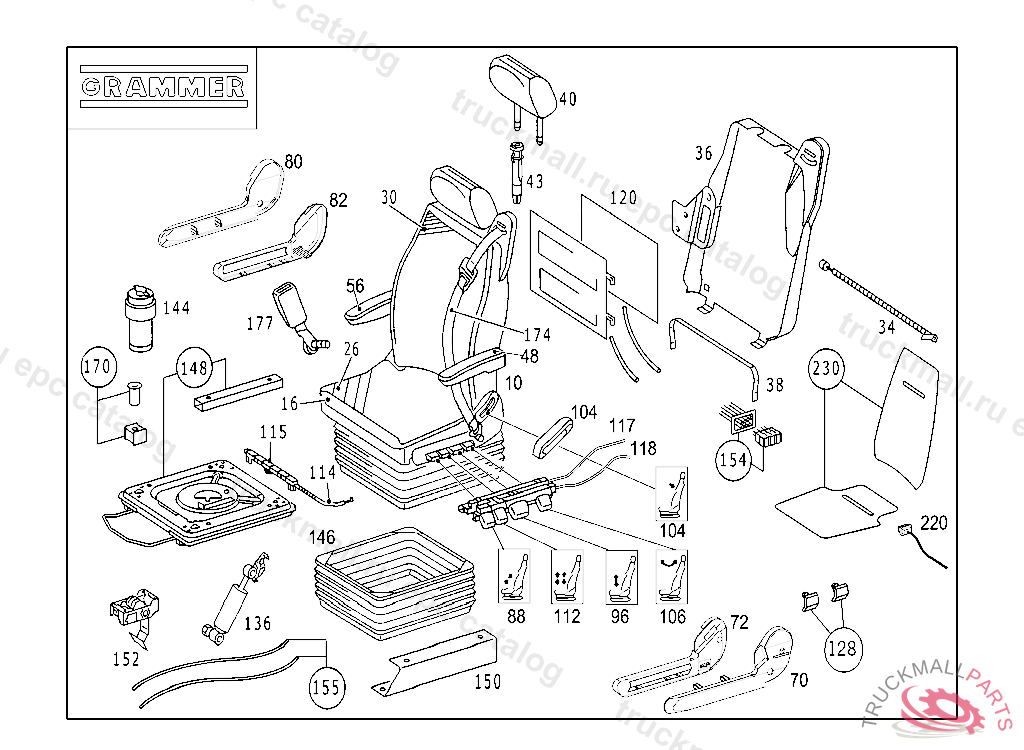

FRONT SEAT SWIVEL TYPE GRAMMER MSG 90.3 G, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
10
FRONT SEAT NON-REVOLVING GRAMMER MSG 90.3 P, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
16
SEAT CUSHION , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
16
SEAT CUSHION , Replaced By: A0019102530
16
SEAT CUSHION
16
SEAT CUSHION LESS SEAT HEATING, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
26
COVER SEAT CUSHION, DETERMINE FABRIC VIA FDOK "NFC 1117"
30
COVERTO GRAMMER MSG 90.3 P
30
COVER BACKREST, DETERMINE FABRIC VIA FDOK "NFC 1117"
34
SPINDLE
36
COVERING BACKREST
36
PANELLING BACKREST
36
COVERING BACKREST
38
SPRING BACKREST
40
HEADREST
40
HEADREST
40
HEADRESTGRAMMER MSG 90.3, DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
43
BUSHING HEAD RESTRAINT
48
FOLDING ARMREST LEFT
48
FOLDING ARMREST LEFT, NO.7327 I....... IIIII
48
ARMREST LEFT
56
ARMREST RIGHT
56
FOLDING ARMREST RIGHT, NO.7327 I....... IIIII
56
FOLDING ARMREST RIGHT
70
COVERING LEFT
70
COVERING LEFT, COMPLETE
70
COVERING LEFT, COMPLETE
70
COVERING LEFT, COMPLETE
70
COVERING
72
COVERING (SIDE COVER) OPERATING FACE,LEFT
72
COVERING LEFT
72
COVERING (SIDE COVER) OPERATING FACE,LEFT
80
COVERING
80
COVERING RIGHT
80
COVERING RIGHT,COMPLETE
82
COVERING (SIDE COVER) OPERATING FACE,RIGHT
82
COVERING (SIDE COVER) OPERATING FACE,RIGHT
82
COVERING
82
COVERING (SIDE COVER) OPERATING FACE,RIGHT
82
COVERING (SIDE COVER) OPERATING FACE,RIGHT
82
COVERING (SIDE COVER) OPERATING FACE,RIGHT
82
COVERING (SIDE COVER) OPERATING FACE,RIGHT
82
COVERING (SIDE COVER) OPERATING FACE,RIGHT
88
HANDLE RAKE ADJUSTMENT
88
LEVER RAKE ADJUSTMENT
96
HANDLE
96
HANDLE HEIGHT ADJUSTMENT
104
HANDLE BACKREST ADJUSTMENT
104
HANDLE BACKREST ADJUSTMENT
104
HANDLE
106
HANDLE HEIGHT ADJUSTMENT
106
HANDLE ROTATING DEVICE
112
HANDLE RIGHT
112
HANDLE , Replaced By: A0009197560
114
PULL HEIGHT ADJUSTMENT
114
PULL SHOCK ABSORBER ADJUSTMENT
114
PULL RAKE ADJUSTMENT
114
PULL ROTATING DEVICE
114
PULL BACKREST ADJUSTMENT
115
SEAT ADJUSTER RAKE ADJUSTMENT
115
SEAT ADJUSTER
115
SEAT ADJUSTER BACKREST ADJUSTMENT
117
PULL INSULATION
118
PULL. CONNECTION
120
TANK LUMBAR VERTEBRA SUPPORT
120
SEAT ADAPTER. TANK LUMBAR VERTEBRA SUPPORT
128
COVERING
136
SHOCK ABSORBER , Replaced By: A0009199045
136
SHOCK ABSORBER
144
SPRING AIR SPRING
144
SPRING AIR SPRING
144
SPRING
146
COVERING
146
BELLOWS SWITCH FOR SEAT ADJUSTMENT,LEFT
146
COVERING
146
COVERING
146
BELLOWS SWITCH FOR SEAT ADJUSTMENT,RIGHT
148
CONSOLE
148
ROTATING ADAPTER ROTATING DEVICE
150
CONSOLE
150
CONSOLE
152
VALVE SELF-LEVELLING DEVICE
152
HEIGHT ADJUSTMENT. SEAT ADJUSTER SELF-LEVELLING DEVICE
152
VALVE LEVEL ADJUSTMENT
152
SEAT ADJUSTER , Replaced By: A0009108736
154
VALVE , Replaced By: A0009108438
154
VALVE , Replaced By: A0009108838
154
VALVE
154
VALVE
154
VALVE
155
HOSE REPAIR KIT
155
AIR TUBE
155
HOSE REPAIR KIT
155
HOSE REPAIR KIT
170
GUIDE SEAT CUSHION
170
GUIDE
174
SAFETY BELT
174
SAFETY BELT
174
SAFETY BELT
177
FASTENER SEAT BELT BUCKLE WITHOUT WARNING CONTACT
177
FASTENER
220
SWITCH SEAT HEATING
230
HEATING PAD
230
HEATING PAD
230
HEATING PAD
230
SEAT HEATING
230
HEATING PAD
