Поз.
Артикул
Описание

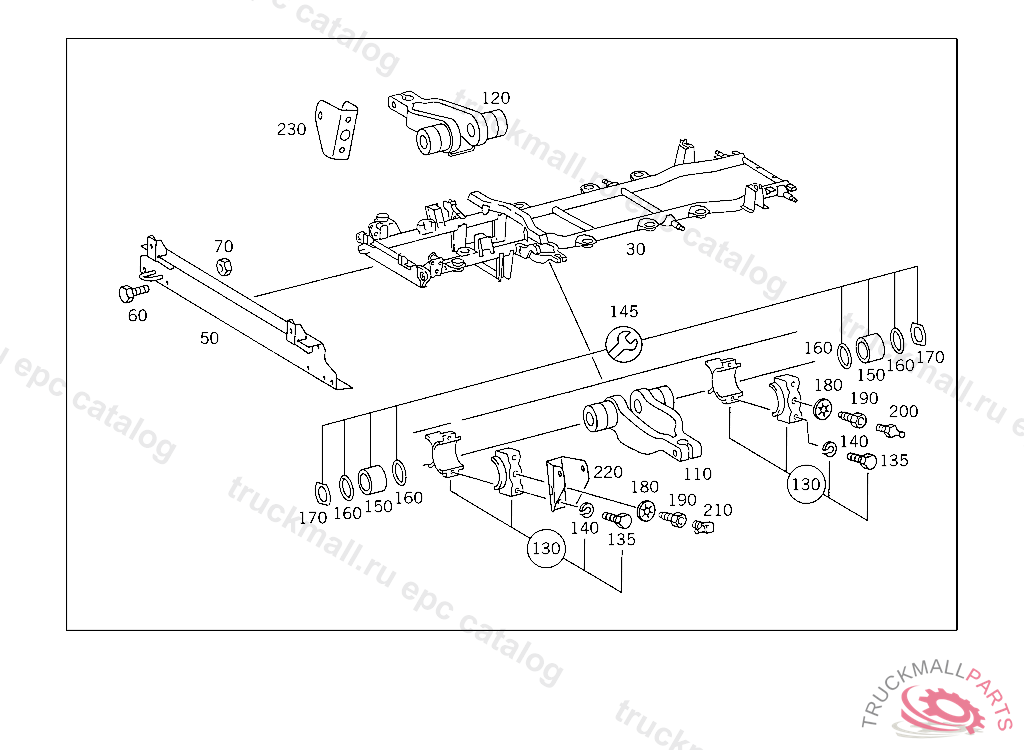

30
FRAME
30
FRAME , Replaced By: A6313107702
30
FRAME ,057123, Replaced By: A6313108702, +001A6313201206
30
FRAME , Replaced By: A6313100903
50
CROSS MEMBER FRONT,099540
60
SCREW CROSS MEMBER TO FRAME
70
NUT , Replaced By: N910113010000
110
TRANSVERSE CONTROL ARM LEFT
120
TRANSVERSE CONTROL ARM RIGHT
130
BEARING BRACKET PARTS KIT
135
SCREW COVER TO BEARING BRACKET M 12X70
140
LOCK WASHER FITTING TO BRACKET
145
REPAIR KIT FRONT AXLE CONTROL ARM
150
BUSHING FRONT AXLE CONTROL ARM
160
RUBBER RING FRONT AXLE CONTROL ARM
170
WASHER FRONT AXLE CONTROL ARM
180
TOOTHED WASHER BRACKET TO EXHAUST PIPE BRACKET
190
SCREW HOLLOW SCREW
200
GREASE NIPPLE INTERMEDIATE LEVER
210
GREASE NIPPLE
220
CONSOLE LEFT SHOCK ABSORBER KP:DUO 323/01
230
CONSOLE RIGHT SHOCK ABSORBER KP:DUO 323/01
999
EXTENSION FRONT, NOT USED
999
REINFORCEMENT ,009290
999
BRACKET
999
BRACKET LINE TO HOSE
999
BRACKET LINE TO HOSE
999
GREASE NIPPLE STRAIGHT
