Mercedes A0004920087 - Puffer

CBC - FAHRGESTELL 2-ACHSER 634.220

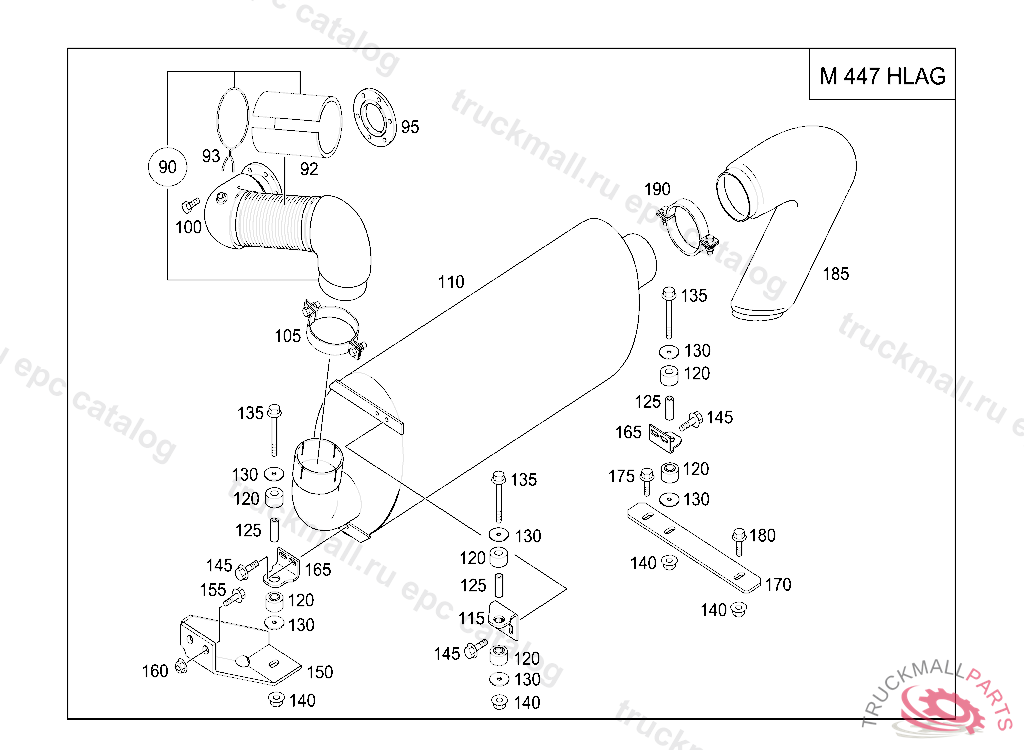

49 EXHAUST SYSTEM - 001 EXHAUST SYSTEM IL. 2

Поз.
Артикул
Описание
90
A6344900121
92
A6344910083
93
A0009881073
WIRE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
95
A6284920180
FLANGE GASKET
100
A0129900601
SCREWM10X25MM
105
A6344900541
110
A6344900114
115
A6294910215
CONSOLE
120
A0004920087
BUFFER
125
A0004910053
SPACER TUBE
130
A0069905640
WASHER50X11X3MM
135
N910105010016
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
140
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
145
N910105010006
SCREWM 10X20
150
A6344910741
150
A6344910041
155
N910105012020
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
160
N000000003276
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
160
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
165
A6294910115
CONSOLE
170
A6344910541
175
N910105010044
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
180
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
185
A6344900221
190
A6344900641
