Mercedes A0054297644 - LU PROPORTIONALRELAI

CBC - FAHRGESTELL 2-ACHSER 634.220

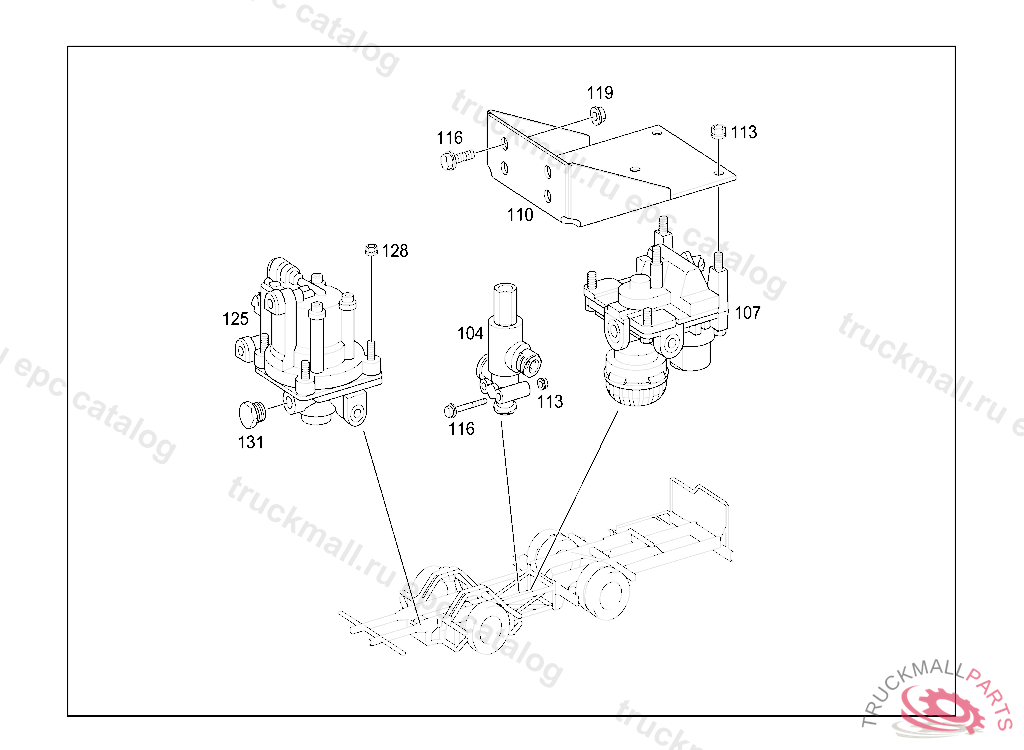

42 BRAKES - 380 SERVICE BRAKE VALVE,RELAY VALVE, TWO-WAY VALVE IL. 2

Поз.
Артикул
Описание
104
A0059976736
VALVE (3/2-WAY SOLENOID VALVE)
107
A0054297644
PROPORTIONING VALVE (RELAY VALVE),FRONT AXLE
107
A0054291244
PROPORTIONING VALVE FRONT AXLE BRAKE CIRCUIT 16.07, TO VOSS 230/232, Replaced By: A0054296944
107
A0054296944
PROPORTIONING VALVE PROPORTIONING VALVE TO VOSS 232, FOR THIS PART NUMBER ONLY THE VOSS 232 AND SCHAEFER SDF CONNECTION SYSTEM MUST BE INSTALLED
107
A0054298944
PROPORTIONING VALVE (RELAY VALVE),FRONT AXLE 12.5BAR
110
A6344281140
113
N913023008003
NUT HORN TO BRACKET M8
116
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
116
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
119
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
125
A0054292344
REDUNDANCY VALVE. VALVE (RELAY VALVE)
128
N913023008003
NUT HORN TO BRACKET M8
131
A0029973030
SCREW PLUG AIR RESERVOIR
131
A0029973130
SCREW PLUG SOLENOID VALVE M16
