Mercedes A0269973848 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

CBC - FAHRGESTELL 2-ACHSER 634.220

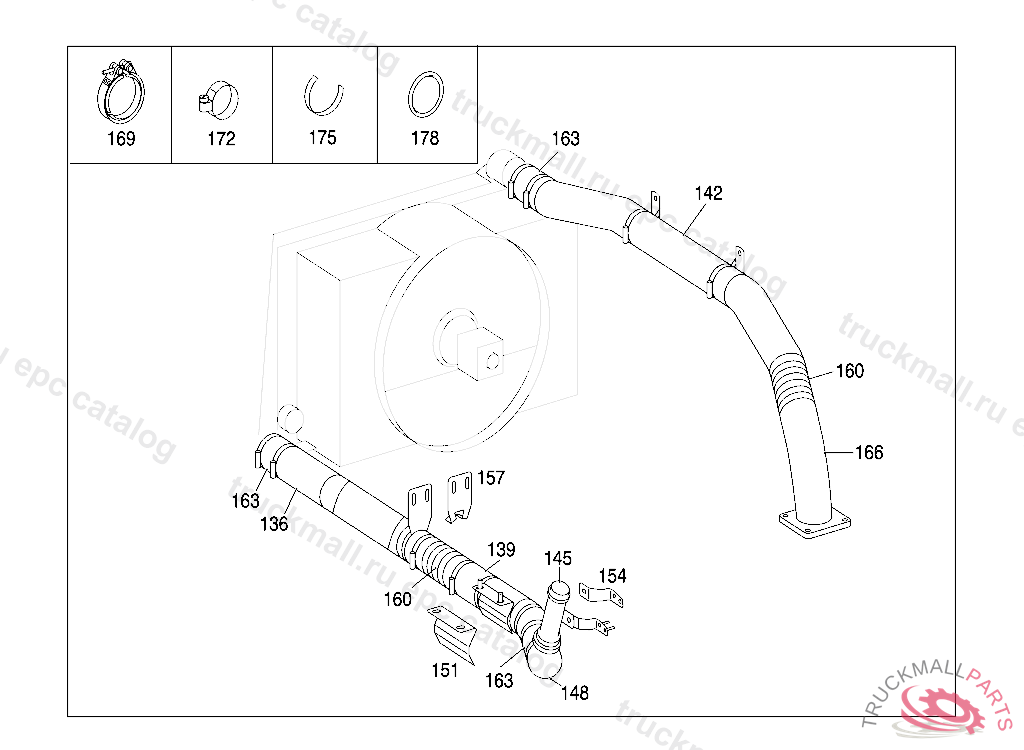

52 CHASSIS SHEET METAL - 120 AIR INTAKE IL. 4

Поз.
Артикул
Описание
136
A6345000888
136
A6345281108
139
A6345281208
139
A6345000988
139
A6345202001
142
A6345200050
142
A6345281308
145
A6345000788
145
A6345201901
148
A4570986507
CHARGING AIR LINE (CHARGE AIR PIPE)
148
A4570981307
CHARGING AIR LINE (CHARGE AIR PIPE), FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 136738, Replaced By: A4570986507
151
A6295010570
BRACKET
154
A6345281040
154
A6345010070
157
A6345010170
160
A0249970382
HOSE100X190MM
163
A0020946982
HOSE AIR INTAKE PIPE TO ENGINE
166
A6345281209
169
A0019955565
CLAMP
172
A0019950710
HOSE CLAMP
172
A3849977390
LOOM TIE. CLAMP
172
A0059970690
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
175
A6295040184
SHIM
178
A0269973848
SEAL RING CHARGING AIR LINE TO TURBOCHARGER, NOT USED
178
N007603012111
SEAL RING LINE CONNECTION
999
A0005280282
HOSE , TO BE ADAPTED DURING ASSEMBLY
999
A4470940082
999
A4760947082
HOSE BOOST AIR PIPE ON TURBOCHARGR, 946692
999
A6285200247
FLANGE
999
A6285284282
999
A6344200033
999
A6345284309
999
Q309358019101
