Mercedes A6293230021 - LAGERSCHALE

CBC - FAHRGESTELL 2-ACHSER 634.220

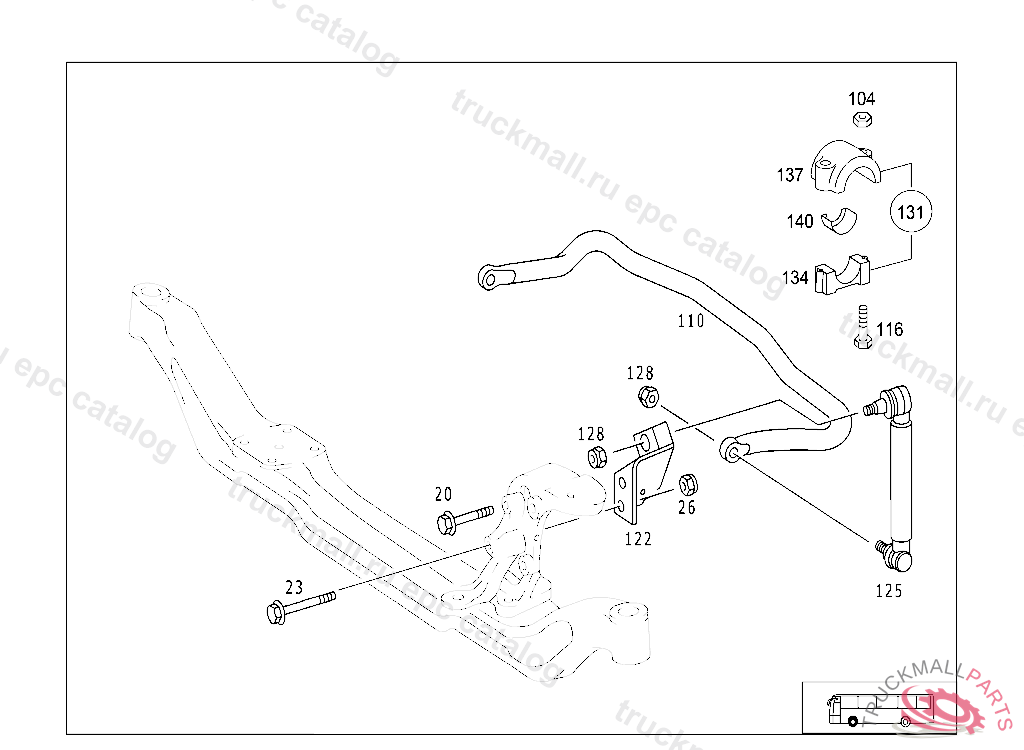

32 SPRINGS AND SUSPENSION - 545 PNEUMATIC SUSPENSION & STABILIZATION ON FRONT AXLE IL. 2

Поз.
Артикул
Описание
20
N000000005727
HEXAGON HEAD BOLT BEARING BRACKET ON BEARING BRACKET M18X1.5X150, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
20
N910105018034
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M18X1.5X150
23
N000000005570
SCREW SHOCK ABSORBER BRACKET TO BEARING BRACKET M18 X 1.5 X 200 MM
26
N000000005739
NUT TRAILER COUPLING TO FRONT CROSS MEMBER M18X1.5
26
N913023018002
NUT RETARDER HOUSING TO TRANSMISSION CASE
104
N913023016001
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
104
N000000005738
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
110
A6283230065
TORSION BAR FRONT AXLE
116
N000000005540
HEXAGON HEAD BOLT MOUNTING, LOWER SHOCK ABSORBER M16X1.5X130,230584
122
A6283200643
BRACKET RIGHT
122
A6283200543
BRACKET LEFT
125
A6283201089
ROD FRONT AXLE,LEFT
125
A6283201189
ROD FRONT AXLE,RIGHT
128
A9709900051
NUT STEERING WHEEL TO STEERING COLUMN
131
A6293200273
BEARING
134
A6293230021
BEARING SHELL TOP
137
A6293230064
COVER BOTTOM
140
A6283220050
BUSHING
999
A6283240135
SPACER
