Mercedes A6385401909 - Кабель

VITO 110 D 638.074

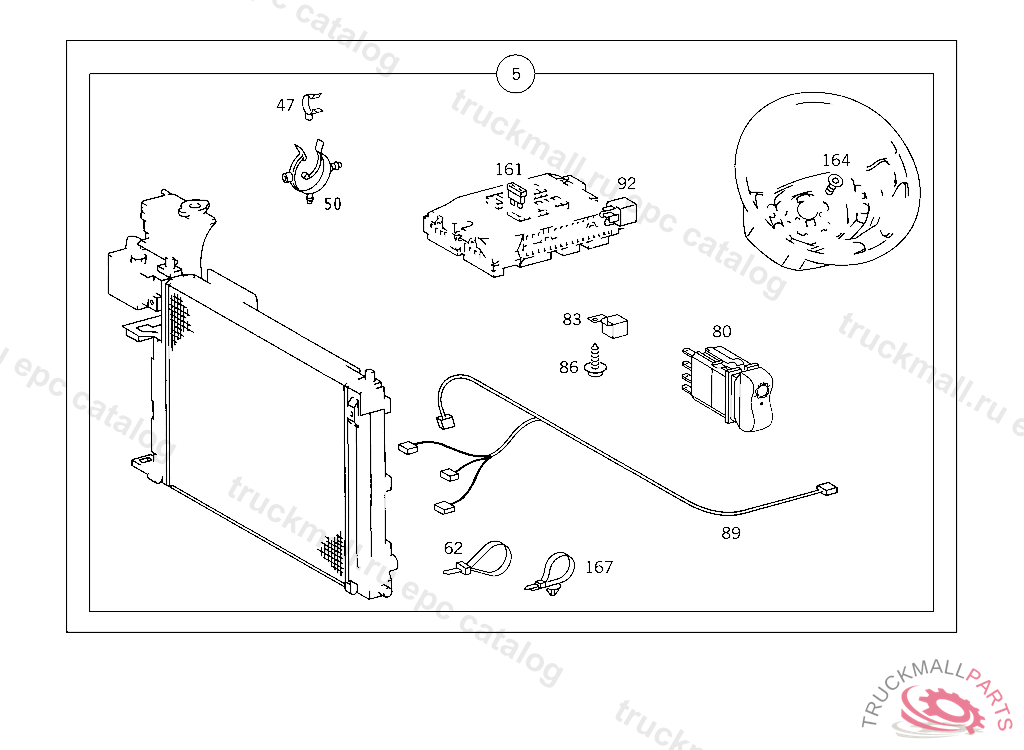

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 116 ENGINE CABLE HARNESS DIESEL VEHICLES IL. 3

Поз.
Артикул
Описание
5
B67320008
AIR CONDITIONER SIMPLIFIED VERSION WITHOUT RESIDUAL HEAT UTILIZATION OM601.970, CAUTION: ON VEHICLES WITH HEATER WITHOUT RECIRCULATING AIR, ONLY REDUCED COOLING CAPACITY
5
A6388301760
47
A0009952365
CLAMP
50
A6389950165
CLAMP , Replaced By: A0009956265
50
A0009956265
HOSE BRACKET FEED LINE AND RETURN LINE 23-30 MM
62
A0019978390
LOOM TIE LINE MOUNTING 280 MM
80
A0045451607
SWITCH AIR CONDITIONER
83
A0008357379
THERMOSTAT DEFROSTER
86
N914138003000
SCREW
89
A6385401909
CABLE HARNESS AIR CONDITIONER, 016686
92
A0035458605
RELAYOM602-(MSA15), P 614658
161
A0025450934
FUSE , Replaced By: N072581000304
164
A1269900312
SCREW W HEXAGON SOCKET. SCREW STEERING WHEEL TO STEERING COLUMN
999
A6382300101
999
A6385000993
BLOWER COMPLETE
999
A6385003000
RADIATOR
999
A6385004200
999
A6388301460
