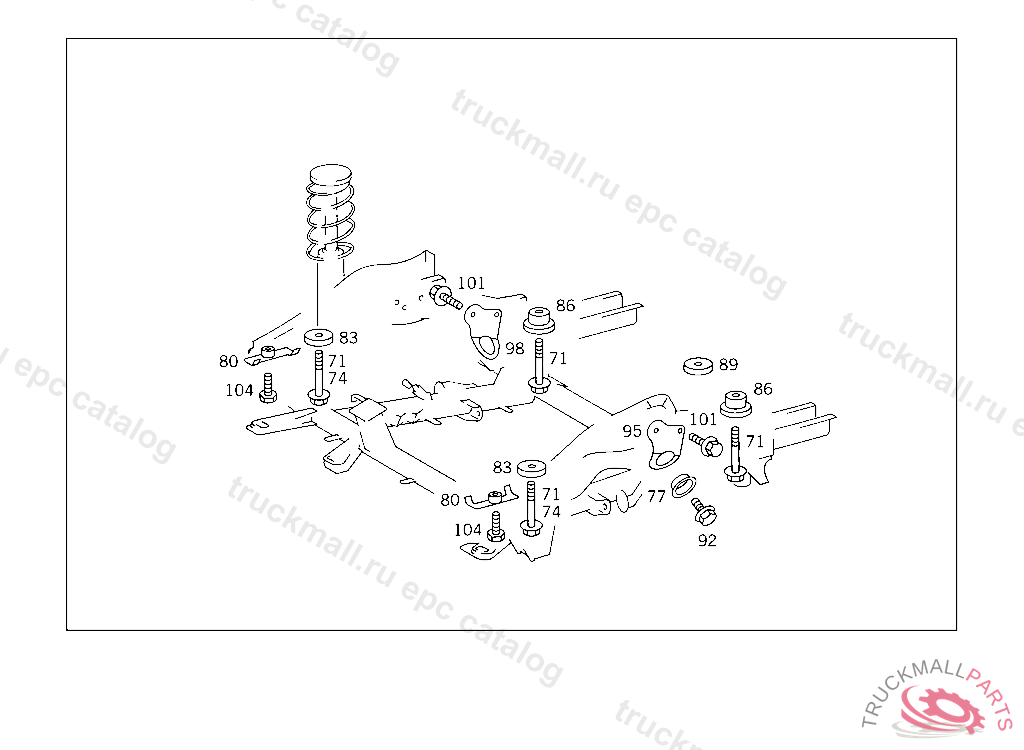

VITO 110 D - 638.074 - 31 FRAME
Поз.
Артикул
Описание
71
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 140
74
SCREW SUPPORT TO FRAME M 14X1.5X160
77
BUFFER PLATE
80
BRACKET
83
STOP FRONT
86
STOP REAR
92
SCREW. HEXAGON HEAD BOLT BRACKET MOUNTING M14X1.5X25,V 207570
95
SHACKLE LEFT
98
SHACKLE RIGHT
101
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
104
SCREW MOUNTING TO CONSOLE M 14X35
104
SCREW , Replaced By: N308676014020
999
AUXILIARY FRAME
999
AUXILIARY FRAME
999
REINFORCEMENT FRONT
