Mercedes A6387201537 - ПЕТЛЯ ДВЕРИ

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.094 FROM IDENT-NR. 246706

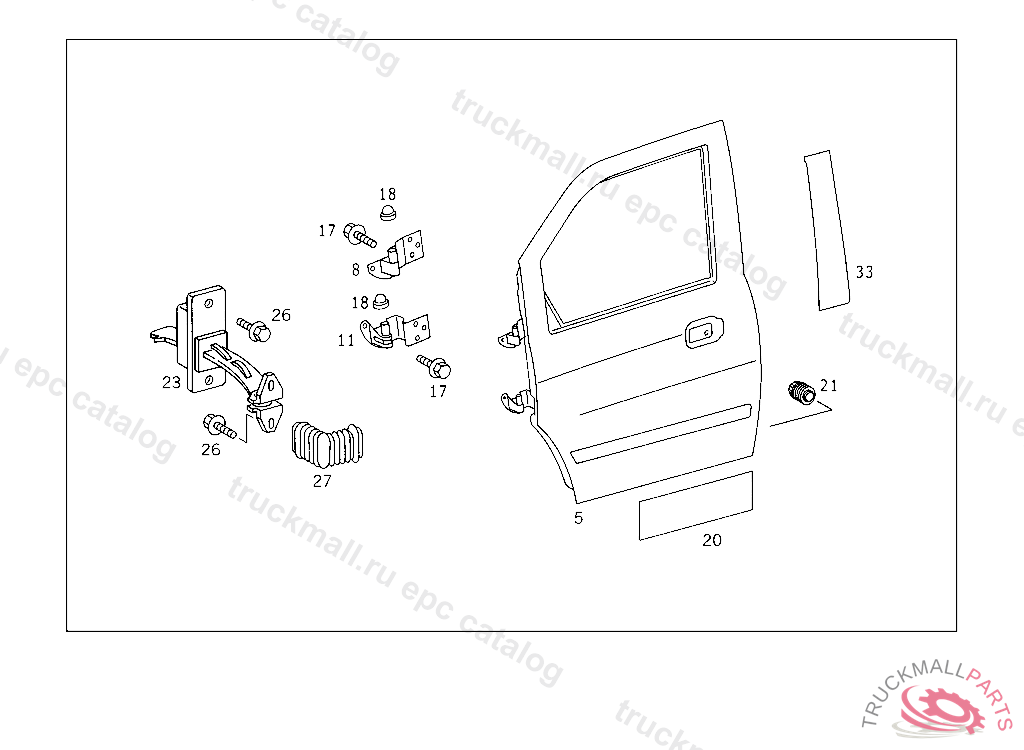

72 FRONT DOORS - 060 FRONT DOOR IL. 1

Поз.
Артикул
Описание
5
A6387201005
DOOR SHELL LEFT,081762
5
A6387201105
DOOR SHELL RIGHT,081762
5
A6387200405
DOOR SHELL , Replaced By: A6387201005
5
A6387200505
DOOR SHELL , Replaced By: A6387201105
8
A6387201437
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202237
8
A6387201537
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202337
8
A6387202337
HINGE TOP RIGHT
8
A6387202237
HINGE TOP LEFT
11
A6387202137
HINGE BOTTOM RIGHT
11
A6387201237
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202037
11
A6387201337
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202137
11
A6387202037
HINGE BOTTOM LEFT
17
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
17
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
18
A6389880681
FASTENER BUTTON GROUND CONNECTION M8-SW
21
A1409870040
RUBBER BUFFER
23
A6387200116
DOOR CHECK LEFT
23
A6387200316
DOOR CHECK RIGHT
26
N910107006007
SCREW SLIDE TO DOOR M 6X20
27
A6389970881
GROMMET CABLE PASSAGE
33
A6386980830
33
A6386980930
