Mercedes A0002951173 - ЗАЖИМ

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.094 FROM IDENT-NR. 246706

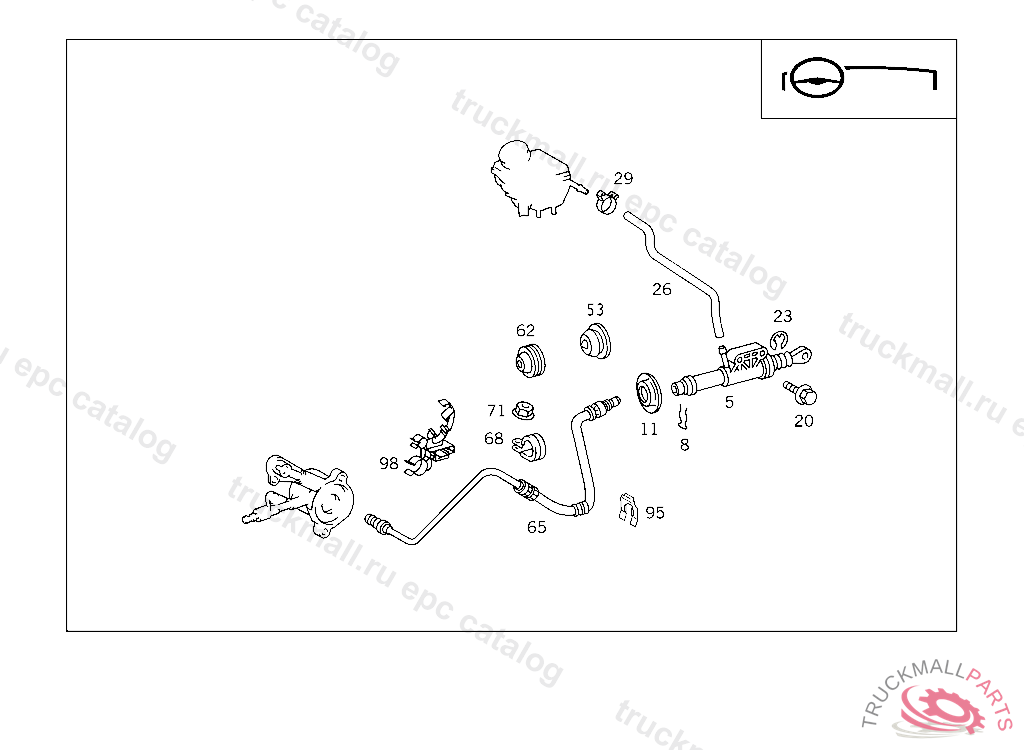

25 CLUTCH - 360 HYDRAULIC CONTROL IL. 1

Поз.
Артикул
Описание
5
A0002903212
CYLINDER CLUTCH MASTER CYLINDER
8
A0002951173
LOCK CLUTCH HOSE
11
A6382930186
BOOT CLUTCH MASTER CYLINDER
20
N910143006005
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
23
N006799006003
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
26
A9069970052
HYDR. HOSE LINE FROM FLUID RESERVOIR TO CLUTCH MASTER CYLINDER, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
26
A6389970252
HOSE LINE FROM FLUID RESERVOIR TO CLUTCH MASTER CYLINDER, ORDER BY THE METER, Replaced By: A9069970052
29
A6389971590
CLAMP VACUUM LINE TO INTAKE MANIFOLD 10.5-13.0 MM
53
A1109870844
EXPANSION PLUG IN FRONT PANEL PILLAR,OUTSIDE, FOR SLIDING ROOF HOSE
62
A6389971081
GROMMET
65
A6382901713
68
N916016014201
CLAMP COOLING WATER LINE TO FIRE WALL
71
N000000003175
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
95
A6525040038
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
98
A0004762036
