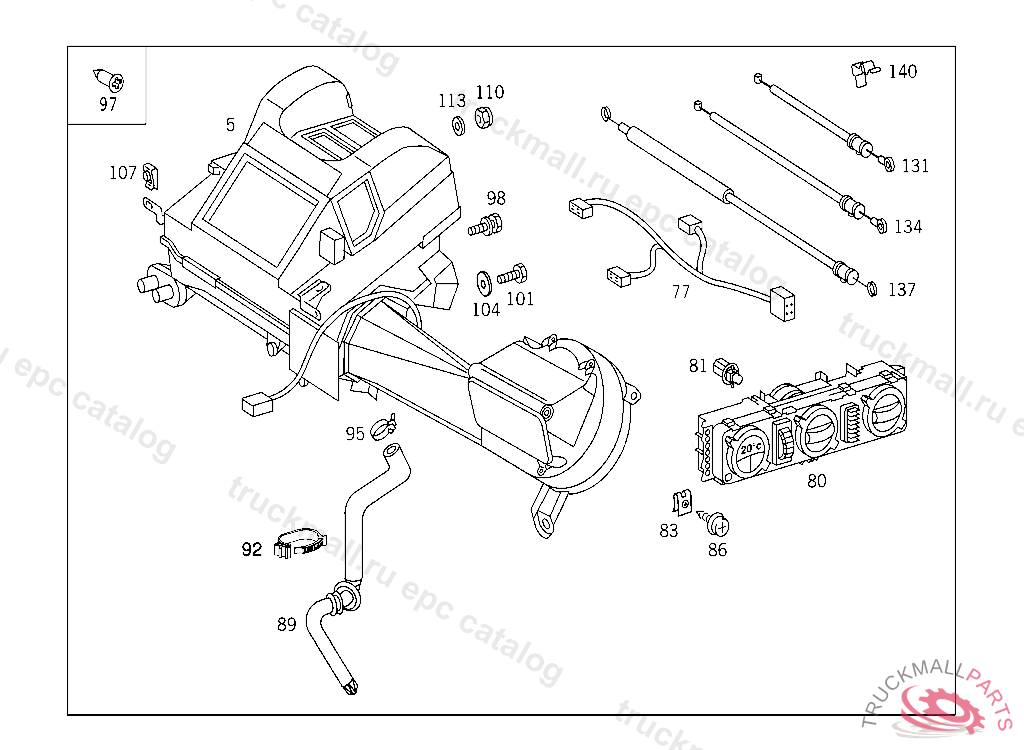

Mercedes A6388302560 - КОНДИЦИОНЕР

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.094 FROM IDENT-NR. 246706

83 HEATING/VENTILATION - 040 FRONT HEATER OR AIR CONDITIONING SYSTEM IL. 1

Поз.
Артикул
Описание
5
A6388301561
5
A6388302461
5
A6388302560
5
A6388301860
5
A6388302460
5
A6388301761
5
A6388301461
5
A6388302161
5
A6388301361
5
A6388301861
5
A6388302361
5
A6388301661
5
A6388302261
5
A6388301960
77
A0005404808
80
A0004463228
HEATING ELECTRONICS. OPERATING UNIT
80
A0004463028
HEATING ELECTRONICS. OPERATING UNIT
80
A0004463428
OPERATING UNIT TEMPMATIK
80
A0008306485
OPERATING UNIT
80
A0008306185
80
A0004463628
HEATING ELECTRONICS. OPERATING UNIT
80
A0008307585
80
A0008306285
OPERATING UNIT
80
A0004461328
OPERATING UNIT , Replaced By: A0004463028
80
A0004461528
OPERATING UNIT , Replaced By: A0004463228
80
A0004461728
OPERATING UNIT TEMPMATIK, Replaced By: A0004463428
80
A0004461928
OPERATING UNIT TEMPMATIC WITH AUXILIARY HOT WATER HEATER, Replaced By: A0004463628
81
N000000002453
BULBT5-12V2W
81
N072601012230
BULB , Replaced By: A6885447093
83
A6389940745
LOCK
86
N000000000521
TAPPING SCREW CONTROL UNIT TO FIRE WALL
89
A6388327323
89
A6388320923
HOSE CONDENSED WATER DRAIN
92
A6389950465
CLAMP CONDENSED WATER DRAIN HOSE
95
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
95
A0059970190
HOSE CLAMP LINE MOUNTING
97
A6386890036
SPACER RIGHT
98
N304017006016
SCREW PUMP TO BRACKET
101
N304017006016
SCREW PUMP TO BRACKET
104
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
107
A6389940445
LOCK ATTACHMENT FOR HEATER
110
N910113006000
NUT HEATING PIPE TO BRACKET
113
N006902007200
WASHER BLOWER TO COWL
131
A6388330431
134
A6388330531
137
A6388330331
140
A0008330570
CLIP BOWDEN CABLE AT AIR FLAP
