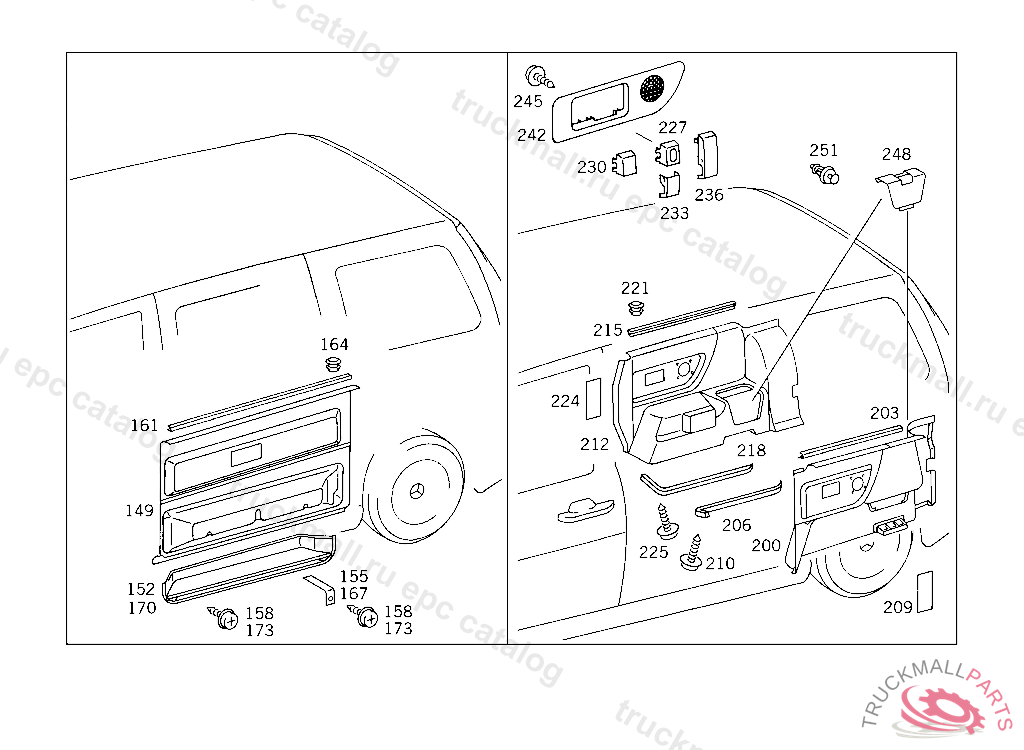

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 - 638.094 FROM IDENT-NR. 246706 - 69 SIDE PANELLING/HEADLINER/ATTACHMENT
Поз.
Артикул
Описание
161
EDGE GUARD SECTION
164
BUSHING
167
REINFORCEMENT ,NO.7C52I NO.8F63IIIIIII
170
RECESS ,NO.7C52I NO.8F63IIIIIII
173
TAPPING SCREW MOUNTING PARTS 4.8X16
200
203
EDGE GUARD SECTION
203
EDGE GUARD SECTION
210
TAPPING SCREW CONTROL UNIT TO FIRE WALL
212
212
PANELLING REAR RIGHT "MARCO POLO", IIIII NO.7D35III
215
EDGE GUARD SECTION
221
BUSHING
225
TAPPING SCREW CONTROL UNIT TO FIRE WALL
227
230
233
236
242
242
245
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
248
COVER AT WHEELHOUSE "MARCO POLO", "KOMBI III",NO.7C52I NO.8F63IIIIIII
