Mercedes A6380008099 - ELEKTRISCHE LEITUNG

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 FROM IDENT-NR. 246706

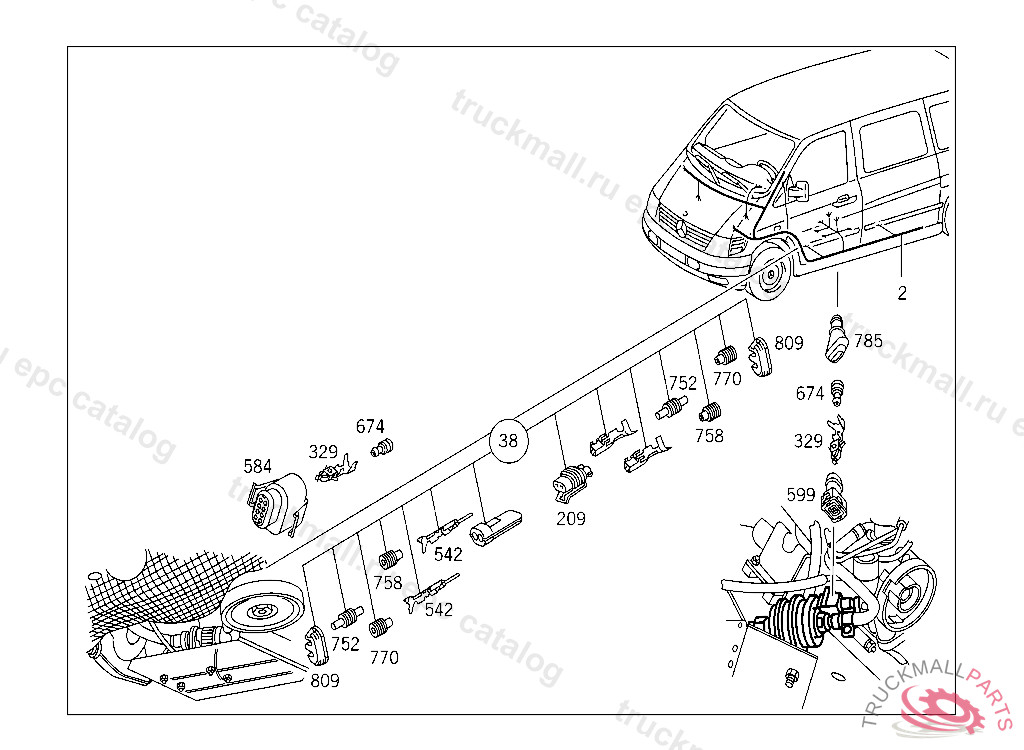

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 136 FRONT END MAIN CABLE HARNESS IL. 1

Поз.
Артикул
Описание
2
A6380007599
2
A6380008099
38
A4185400081
PARTS KIT HAND LAMP PLUG SOCKET X42.1, 2PIN
209
A0075455626
PIN BUSHING HOUSING
329
A0115458026
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
329
A0115457626
CONTACT SPRING WITH GASKET 1.5-2.5 MM2
329
A0115457726
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
329
A0115458126
CONTACT SPRING0.5-1.0 MM2
542
A0305454128
FLAT PLUG0.35-1.0MM2
584
A0345456628
PIN BUSHING HOUSING 8-POLE
599
A1405453528
PLUG INJECTION VALVE
674
A0005452839
WIRE SEAL
674
A0005456280
GASKET. BLIND PLUG
674
A0005452939
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
752
A0005459480
GASKET WINDOW SILL
758
A0005459780
GASKET BLUE 5.75 MM
770
A6655457480
GASKET
785
A0005458583
CAP. BOOT ,126372
809
A0015452783
CAP
