Mercedes A6382411713 - ПОДУШКА ДВИГАТЕЛЯ

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 FROM IDENT-NR. 246706

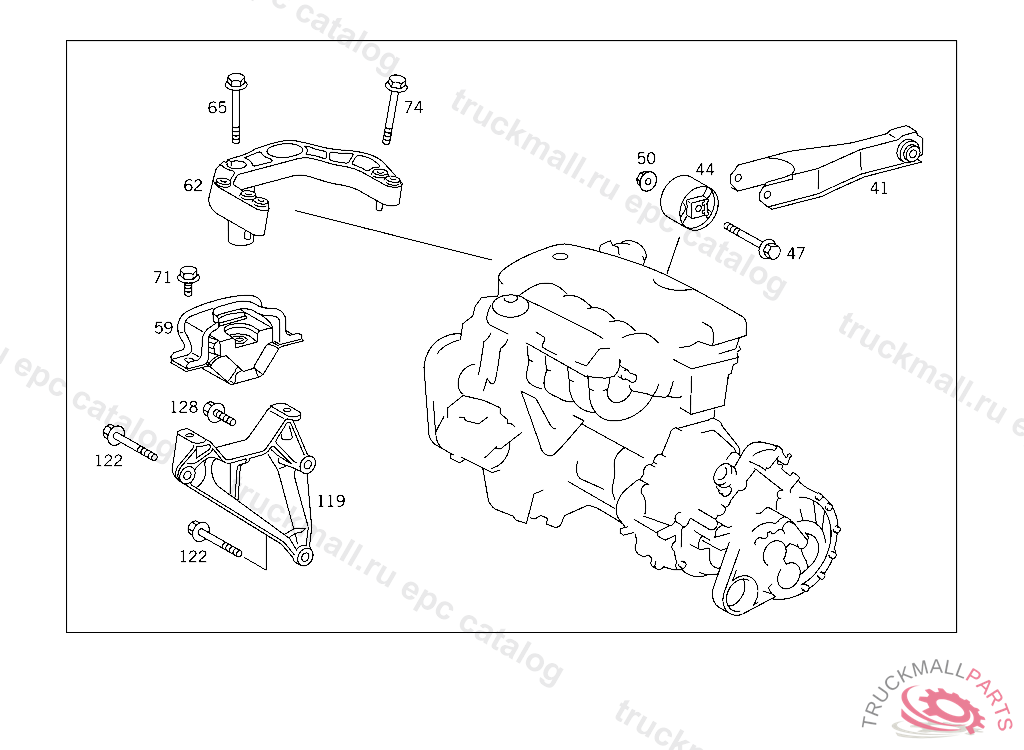

24 ENGINE SUSPENSION - 060 ENGINE SUSPENSION IL. 3

Поз.
Артикул
Описание
41
A6382420209
44
A6382420213
RUBBER MOUNTING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6382420313
47
N910105012018
HEXAGON HEAD BOLT TOWING EYE TO FRAME M12X1.5X100
50
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
59
A6382411713
62
A6112230504
ENGINE SUPPORT , 638 246706 SEE CHASSIS PARTS KIT FOR "FROM VIN" NO.
65
N910105014022
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X120
71
N000000001672
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M12 X 1.5 X 40
74
N910105010016
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
119
A6382421702
119
A6382421802
122
N910105010044
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
122
A0009904804
SCREW OIL FILTER TO CYLINDER CRANKCASE
128
N910143010012
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
