Mercedes A6382700296 - ТРУБКА

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 FROM IDENT-NR. 246706

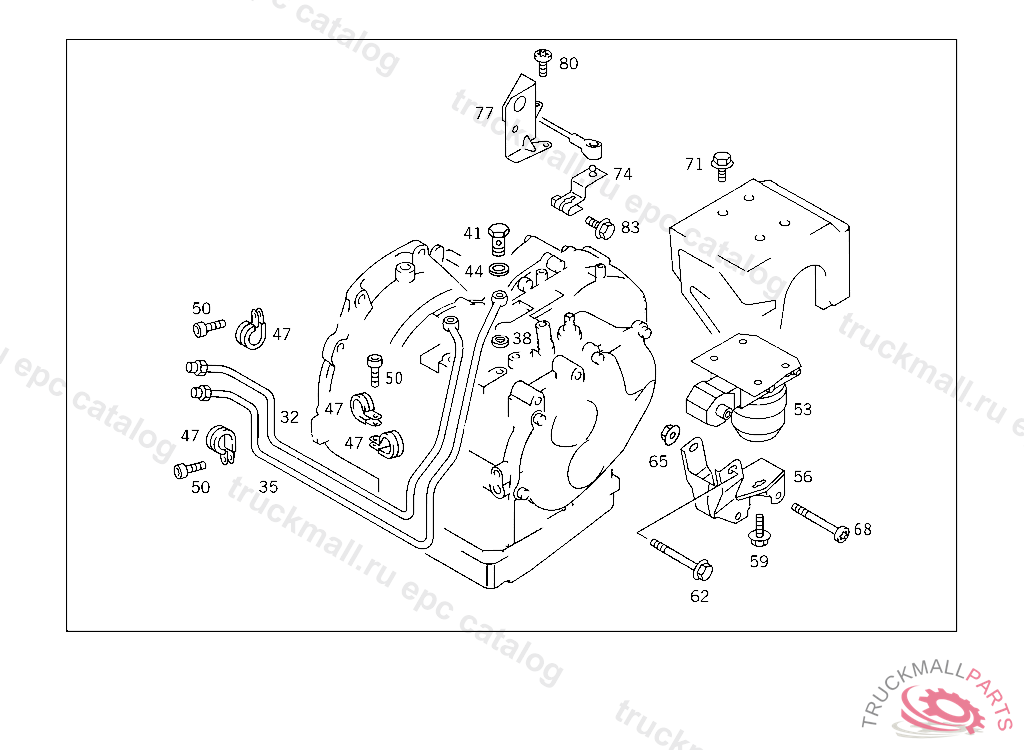

27 AUTOMATIC TRANSMISSION - 785 TRANSM. DETACHABLE BODY PARTS FOR V6 IL. 2

Поз.
Артикул
Описание
32
A6382700196
35
A6382700296
38
A6382770055
41
N915036008210
HOLLOW SCREW LINE MOUNTING,437171
44
N007603012110
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
47
N000000001045
CLAMP CABLE HARNESS MOUNTING
50
N000912006066
SCREW BEARING BRACKET TO TRANSMISSION
53
A6382660003
56
A6382600560
59
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
62
N910105012018
HEXAGON HEAD BOLT TOWING EYE TO FRAME M12X1.5X100
65
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
68
N910143010017
HEXALOBULAR BOLT BRACKET AND DISTRIBUTOR TO REAR AXLE I M 10X55
71
A0119902101
74
A6382670030
77
A6382670042
80
N910143006001
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
83
N910143006005
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
