Mercedes A6387200316 - Ограничитель двери

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 FROM IDENT-NR. 246706

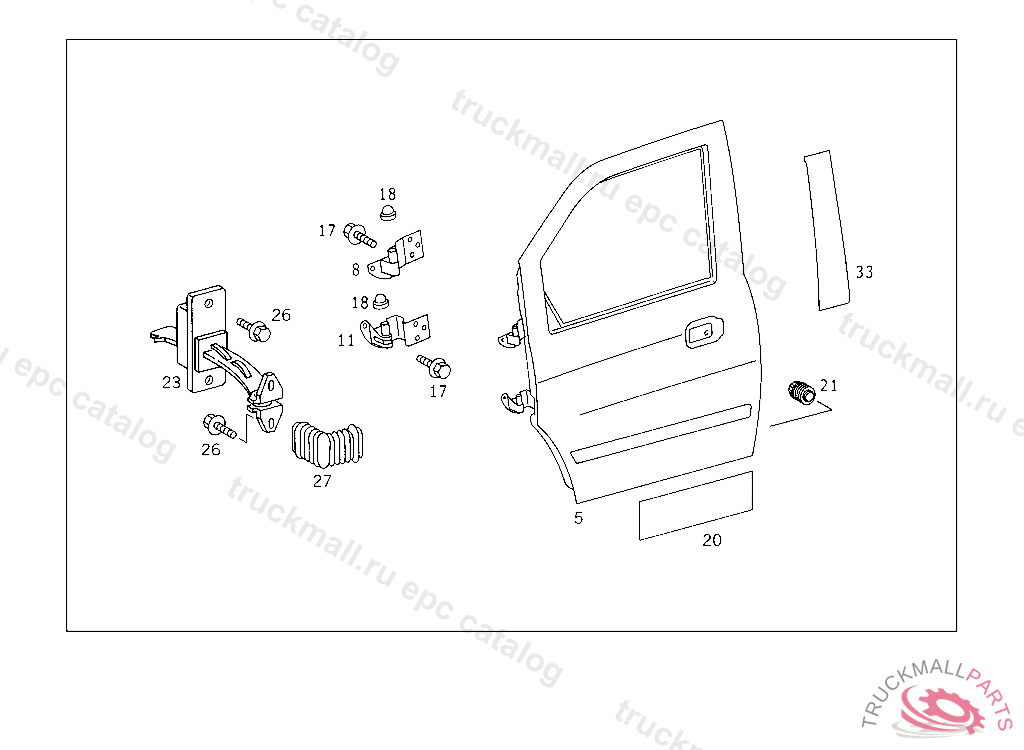

72 FRONT DOORS - 060 FRONT DOOR IL. 1

Поз.
Артикул
Описание
5
A6387201005
DOOR SHELL LEFT,081762
5
A6387201105
DOOR SHELL RIGHT,081762
5
A6387200405
DOOR SHELL , Replaced By: A6387201005
5
A6387200505
DOOR SHELL , Replaced By: A6387201105
8
A6387201437
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202237
8
A6387201537
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202337
8
A6387202237
HINGE TOP LEFT
8
A6387202337
HINGE TOP RIGHT
11
A6387201237
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202037
11
A6387201337
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202137
11
A6387202037
HINGE BOTTOM LEFT
11
A6387202137
HINGE BOTTOM RIGHT
17
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
17
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
18
A6389880681
FASTENER BUTTON GROUND CONNECTION M8-SW
20
A6389891471
INSULATION600X200X1,5 MM, TO BE ADAPTED DURING ASSEMBLY
21
A1409870040
RUBBER BUFFER
23
A6387200316
DOOR CHECK RIGHT
23
A6387200116
DOOR CHECK LEFT
26
N910107006007
SCREW SLIDE TO DOOR M 6X20
27
A6389970881
GROMMET CABLE PASSAGE
33
A6386980830
33
A6386980930
