Mercedes A6388312545 - КАНАЛ

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 FROM IDENT-NR. 246706

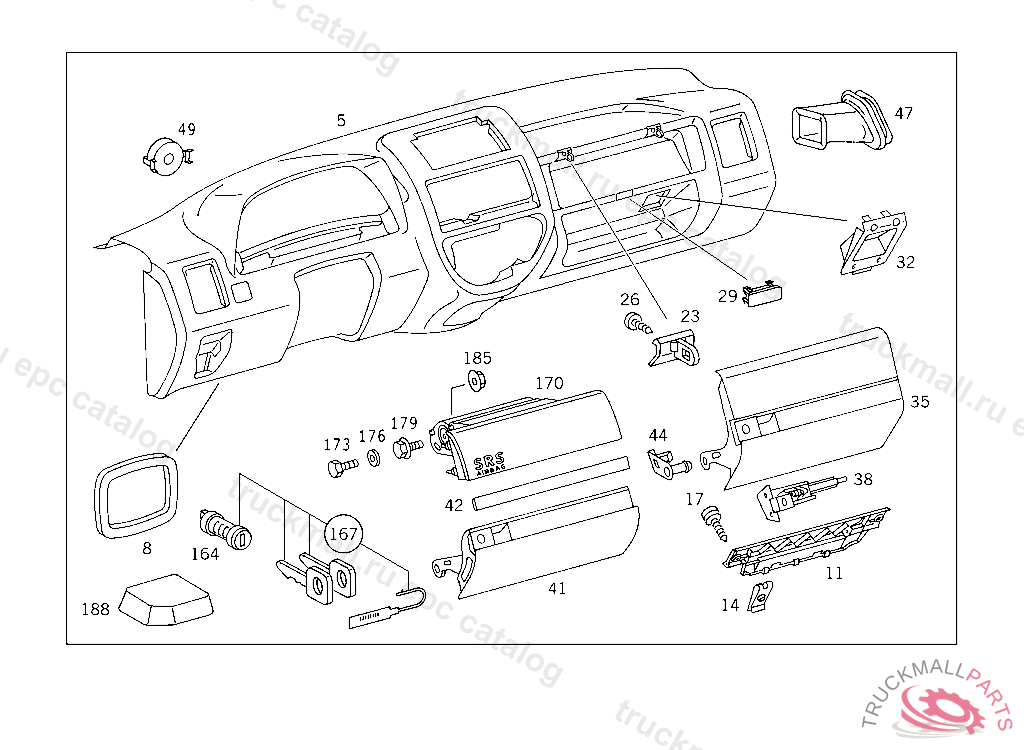

68 INSTRUMENT PANEL/LINING - 330 INSTRUMENT PANEL IL. 1

Поз.
Артикул
Описание
5
A6386807187
5
A6386806088
5
A6386806987
INSTRUMENT PANEL V CLASS,185836NO.7C52I NO.8F63IIIIIII
5
A6386805988
11
A6386890108
COVERING ,NO.7C52I NO.8F63IIIIIII
14
A6389940745
LOCK
17
N000000000522
SHEET METAL SCREW BRACKET TO SUPPORT
32
A6386890514
BRACKET ,NO.7C52I NO.8F63IIIIIII
41
A6386890783
41
A6386890883
COVER PIGEON HOLE,ONLY WITH AIRBAG "TREND",NO.7C52I NO.8F63IIIIIII
41
A6386891583
41
A6386891683
42
A6386830524
42
A6386830624
44
A6386890051
HINGE PIN
47
A6388312645
DUCT RIGHT
47
A6388312545
DUCT LEFT
49
A6384630052
SPACER WASHER MOUNTING OF INSTRUMENT PANEL
164
A6386890101
TUMBLER. LOCK , THEFT-RELEVANT PART
167
A6386890201
TUMBLER WORKSHOP VERSION,WITH KEY, ANY LOCK
170
A6388600402
AIR BAG CO-DRIVER,185836NO.7C52I NO.8F63IIIIIII
173
N304017006020
SCREW LICENSE PLATE TO BRACKET
176
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
176
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
179
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
185
N910112006003
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
188
A6386840129
PAD AIRBAG UNIT STYROPOR
