Mercedes B66848911 - Ус-во прицепное

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 FROM IDENT-NR. 246706

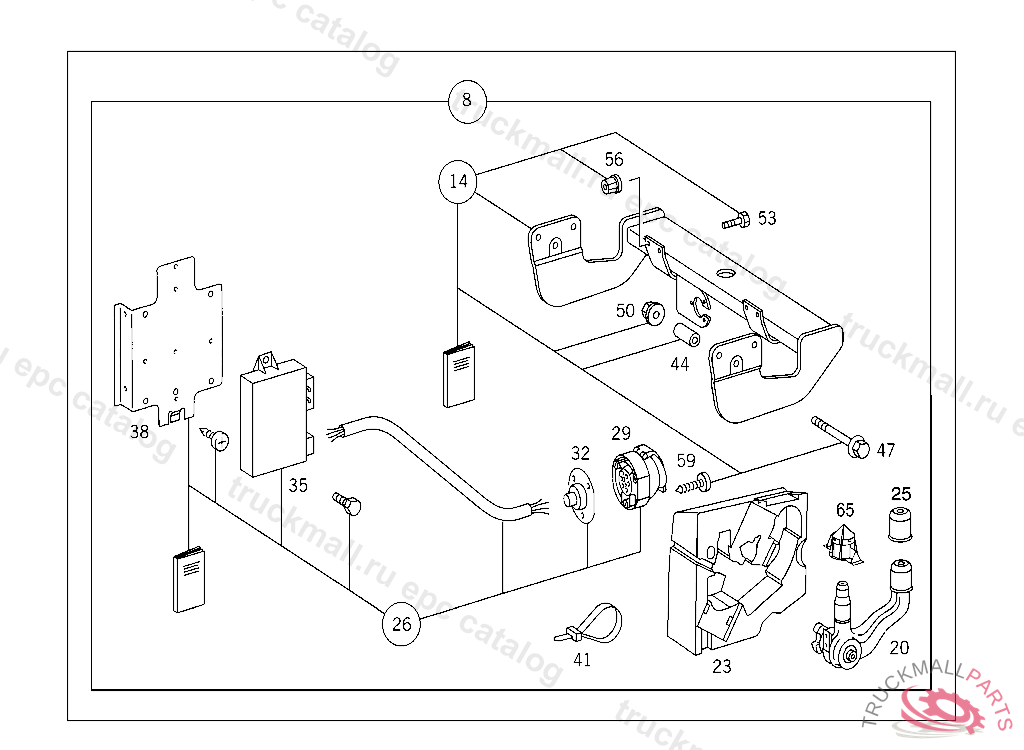

31 FRAME/TRAILER COUPLING - 420 TRAILER COUPLING IL. 2

Поз.
Артикул
Описание
8
B66848911
TRAILER COUPLING WITH DETACHABLE BALL HEAD
14
A0003100746
CROSS MEMBER
20
A6383150799
TRAILER COUPLING
23
A6385830551
23
A6383150340
BRACKET ON SIDE PANEL
25
A0003150829
CAP
26
A0025401381
PLUG SOCKET SCOPE OF DELIVERY,ELECTRIC SET
29
A0005406481
PLUG SOCKET 13-POLE
32
A1249972381
GROMMET , Replaced By: A0005455480
35
A0115459532
CONTROL UNIT
38
A6385450940
BRACKET HEATED REAR WINDOW PANE RELAY
41
A0029972490
CABLE TIE310X5MM
41
A0019978390
LOOM TIE LINE MOUNTING 280 MM
44
A3183170053
SPACER TUBE LEAF SPRING TO CONSOLE AT CAB
47
N910105012030
HEXAGON HEAD BOLT TRANSMISSION CASE FRONT PART TO REAR PART M12X100
50
N913023012004
NUT BRACKET TO SIDE MEMBER
53
N910106008012
SCREW BEARING BRACKET TO FIRE WALL
56
A6389840221
RIVETED NUT TYRE INFLATION COMPRESSOR
59
N000000000465
TAPPING SCREW LIGHT SWITCH 4.8X32
65
A0003151567
CAP FOR CLOSING THE RECEPTACLE WITH REMOVED BALL HEAD, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
