Mercedes A0075458226 - Гнездовой патрон

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 FROM IDENT-NR. 246706

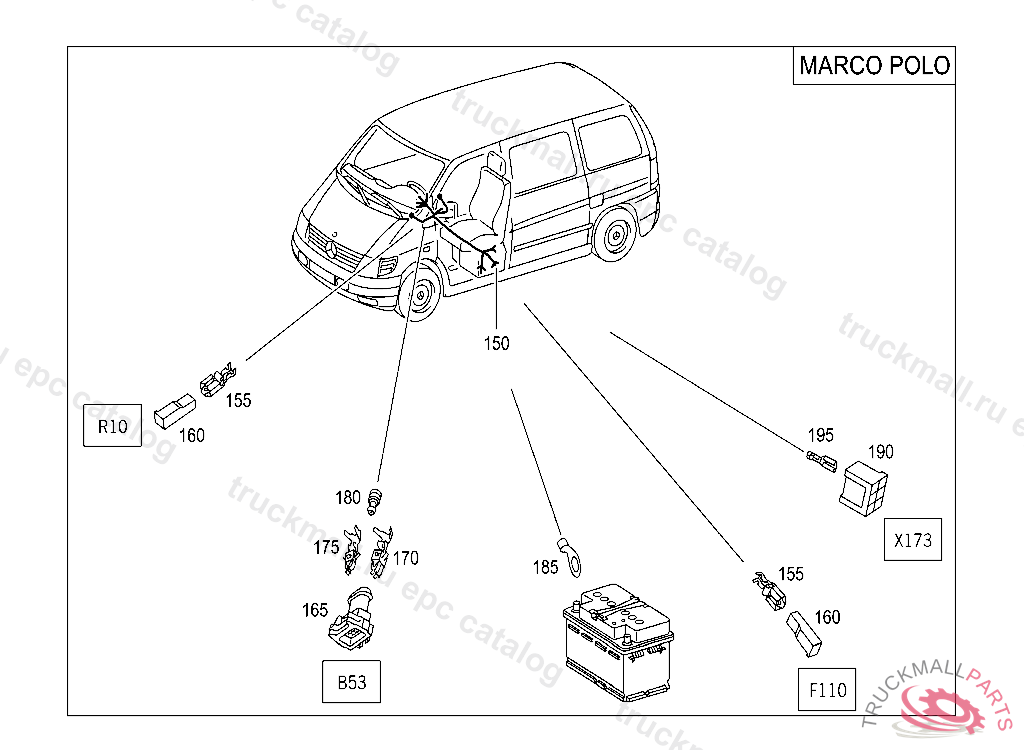

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 136 FRONT END MAIN CABLE HARNESS IL. 1

Поз.
Артикул
Описание
155
A0085456026
FLAT PLUG. FLAT PIN BUSHING WITH DETENT 1.5-2.5 MM2
155
A0085456126
FLAT PLUG. FLAT PIN BUSHING PARKING BRAKE SWITCH
155
A0085456226
FLAT PIN BUSHING6 MM2
160
A0025459226
PLUG HOUSING UNIPOLAR
165
A0055455426
PIN BUSHING HOUSING BIPOLAR TO 651 540 36 09
170
A0055456826
CONTACT SPRINGTO 657 540 50 10
175
A0115457626
CONTACT SPRING WITH GASKET 1.5-2.5 MM2
180
A0005452939
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
180
A0005452839
WIRE SEAL
185
N046234006003
CABLE SHOE. CABLE LUG TELMA BRAKE CONTROL TO 662 540 00 37
190
A0075450528
PIN BUSHING HOUSING 6-POLE
195
A0075458226
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
