Mercedes A6383170036 - УПОР

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 FROM IDENT-NR. 246706

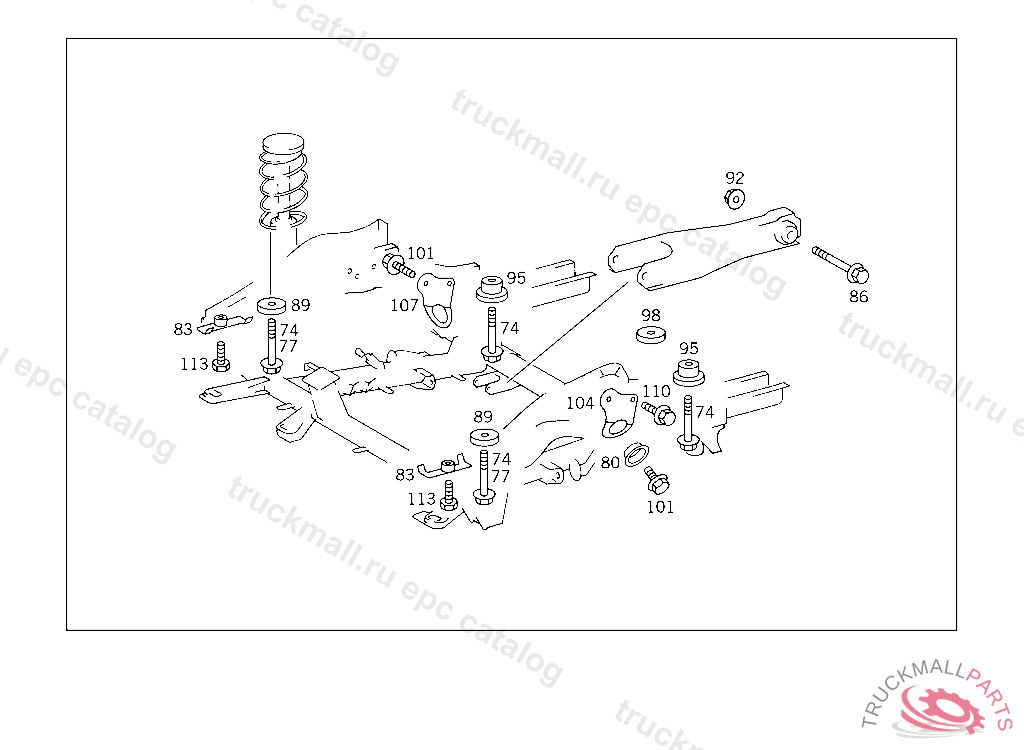

31 FRAME/TRAILER COUPLING - 150 FRONT FRAME AREA IL. 3

Поз.
Артикул
Описание
74
N910105014019
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
77
N910105014016
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
80
A6383170035
BUFFER PLATE
83
A6383101609
BRACKET
86
A0159909201
BOLT AND WASHER ASSY. STEERING TO CROSS MEMBER M12X70
89
A6383170036
STOP FRONT
92
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
95
A6383170136
STOP REAR
98
A6383170436
101
A0069901801
BOLT AND WASHER ASSY. STRUT TO BEARING BRACKET M14X1.5X25
104
A6383120266
SHACKLE LEFT
107
A6383120366
SHACKLE RIGHT
110
N910105012003
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
113
N000000005475
113
N308676014008
SCREW MOUNTING TO CONSOLE M 14X35
