Mercedes A6389971481 - Каб. втулка

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 FROM IDENT-NR. 246706

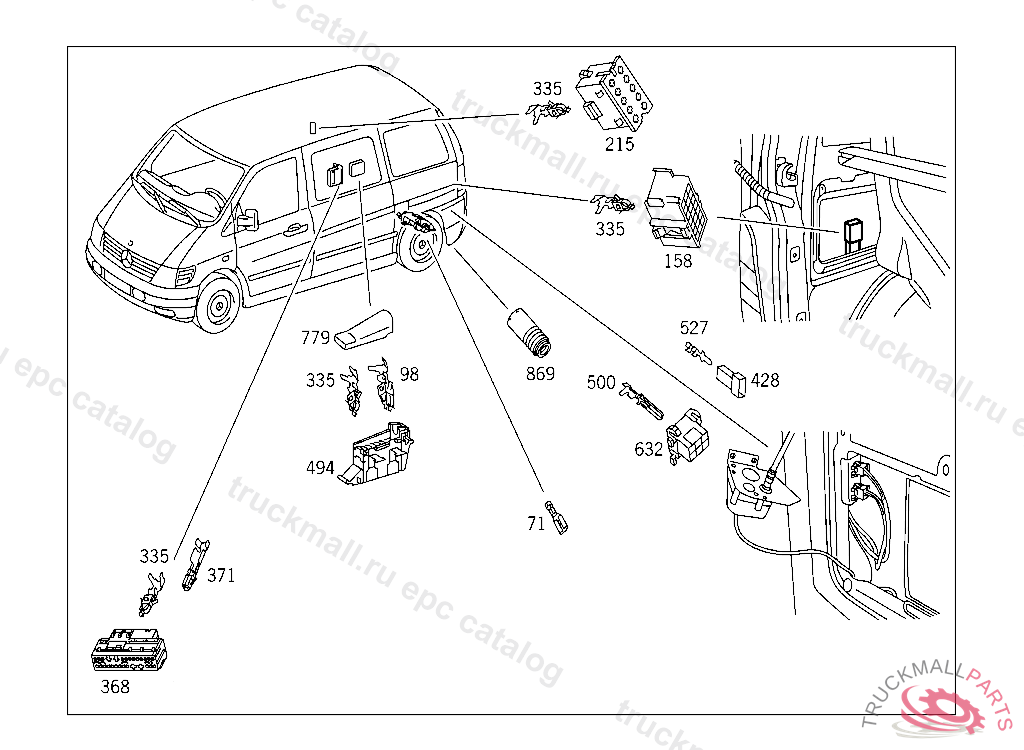

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 136 FRONT END MAIN CABLE HARNESS IL. 4

Поз.
Артикул
Описание
71
A0085450426
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 0.5-1.0 MM2
71
A0075458426
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
71
A0015453126
PIN BUSHING LESS DETENT 4.0-6.0 MM2
98
A0045459526
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 4.0-6.0 MM2
98
A0045450026
FEMALE CONTACT. CONTACT SPRING4.0 MM2
98
A0115458426
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
98
A0045455226
CONTACT SPRING1-2.5 MM2
158
A0065453126
PIN BUSHING HOUSING 21-POLE
215
A0075456026
PIN BUSHING HOUSING ROCKER SWITCH 10 PIN
335
A0115458126
CONTACT SPRING0.5-1.0 MM2
335
A0115458026
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
368
A0135450726
PLUG SOCKET 28-POLE
371
A0135453026
CONTACT SPRING WITH DETENT 0.35-0.5 MM2
428
A0025451328
PIN BUSHING HOUSING UNIPOLAR
494
A0175454128
PIN BUSHING HOUSING SEAT HEATING CONTROL UNIT
500
A0215456028
FLAT PLUG. PLUG1-2.5 MM2
500
A0195450028
PLUG , FROM MODEL YEAR '83
527
A0285455328
FLAT PLUG WITH DETENT 4-6 MM2
527
A0355458128
FLAT PLUG WITH DETENT 0.5-1.0 MM2
527
A0315453328
PLUG
632
A6555450928
PLUG HOUSING 6-POLE
779
A0005456583
CAPTO 017 545 41 28
869
A6389971481
GROMMET
