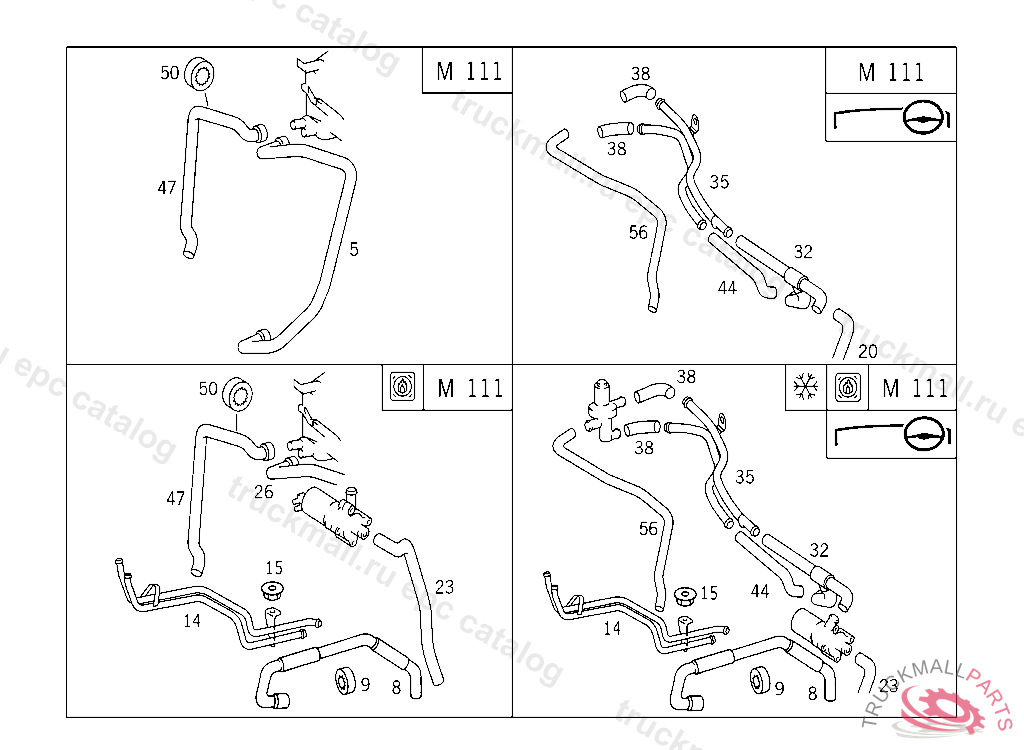

V 200 CDI, V 220 CDI, V 200, V 230, V 280 - 638.294 FROM IDENT-NR. 246706 - 83 HEATING/VENTILATION
Поз.
Артикул
Описание
8
HOSE HEATING FEED
8
9
RUBBER RING
14
PIPE LINE FOR ADDITIONAL HEATER
15
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
20
HOSE HEATING FEED
23
HOSE FROM AUXILIARY HEATER TO HEAT EXCHANGER
32
HOSE BETWEEN WATER VALVE AND RECIRCULATING PUMP
35
PIPE LINE HOSE LINE TO HEATER PIPE LINE,142111188121
38
HOSE HOSE LINE TO HEATER PIPE LINE
44
HOSE FROM VALVE TO HEAT EXCHANGER,188121
56
HOSE FROM RETURN LINE TO WATER PUMP
