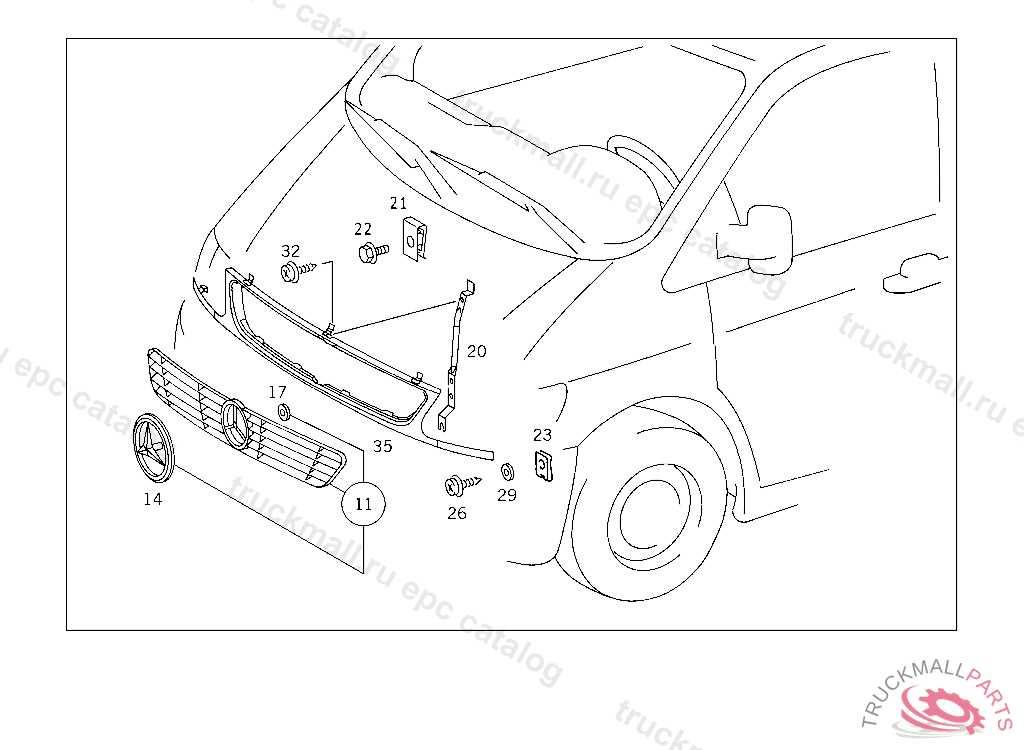

V 200 CDI, V 220 CDI, V 200, V 230, V 280 - 638.294 FROM IDENT-NR. 246706 - 88 BUMBER/FENDER/ENGINE HOOD
Поз.
Артикул
Описание
11
14
MERCEDES STAR
17
LOCK BADGE TO RADIATOR GRILLE SHELL
20
BRACKET RADIATOR GRILLE SHELL
21
LOCK ATTACHMENT FOR HEATER
22
SCREW SLIDE TO DOOR M 6X20
23
LOCK MOUNTING BUMPER
26
SHEET METAL SCREW PANELLING TO COWL 6.3X19
29
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
29
WASHER COMPRESSED AIR LINE TO BRACKET
32
TAPPING SCREW FASTENING OF FRONT FOG LAMPS,LEFT AND RIGHT 4.8 X 22
35
