Поз.
Артикул
Описание

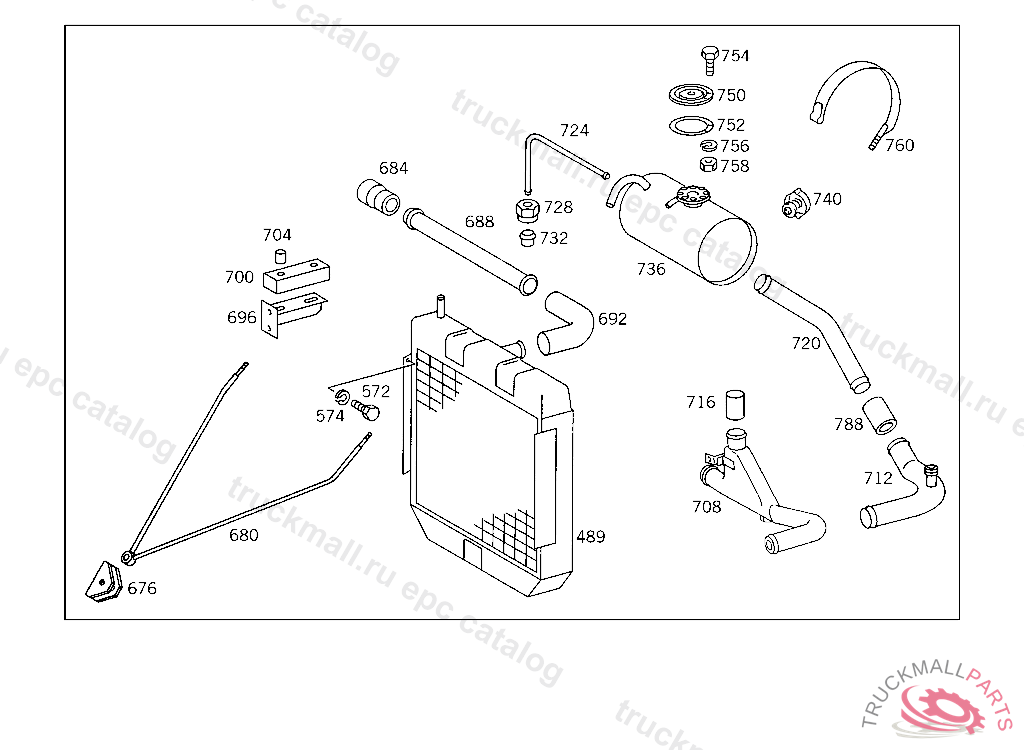

489
RADIATOR
572
SCREW
574
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
676
BRACKET RADIATOR BRACING
680
RADIATOR STRUT
684
HOSE FROM THERMOSTAT TO RADIATOR
688
COOLING WATER PIPE FROM THERMOSTAT TO RADIATOR
692
HOSE FROM THERMOSTAT TO RADIATOR
696
BRACKET COOLING WATER PIPE TO RADIATOR,TOP,11373087
700
RUBBER PAD
704
SPACER TUBE BRACKET
708
SEPARATOR (BUBBLE SEPARATOR)
712
LINE FROM BUBBLE SEPRATOR TO OIL COOLER
716
LOCKING CAP COOLING WATER LINE
720
COOLING WATER PIPE
724
BREATHER PIPE
728
UNION NUT LINE CONNECTION, Replaced By: N000000006239
732
GLAND , Replaced By: A0019901967
736
TANK (EXPANSION TANK)
736
TANK (EXPANSION TANK)
740
RADIATOR CAP
750
VALVE
752
GASKET
754
SCREW IN CASE OF SUBSEQUENT INSTALLATION
756
LOCK WASHER T-FITTING TO BRACKET
758
HEX. NUT M 5 DIN 934-5 S. NUT PLUG SOCKET TO FRAME
760
CLAMP EXPANSION TANK TO SUPPORT
788
HOSE FROM RESERVOIR TO BUBBLE SEPARATOR
999
BRACKET , Replaced By: A6645287540, +001A6645287640
999
REPAIR KITTO 000 295 07 18
999
RODTO A 000 295 13 18
999
PISTONTO A 000 295 13 18
999
BOOT ,5 962906, Replaced By: A0002955683
999
CLUTCH PRESSURE PLATE
999
CLUTCH DISC
999
CLUTCH DISC
999
SWITCH,AUTOMATIC TEMPERATURE GAUGE SENDER UNIT
