Mercedes A0019845829 - Болт

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 TO IDENT-NR. 246705

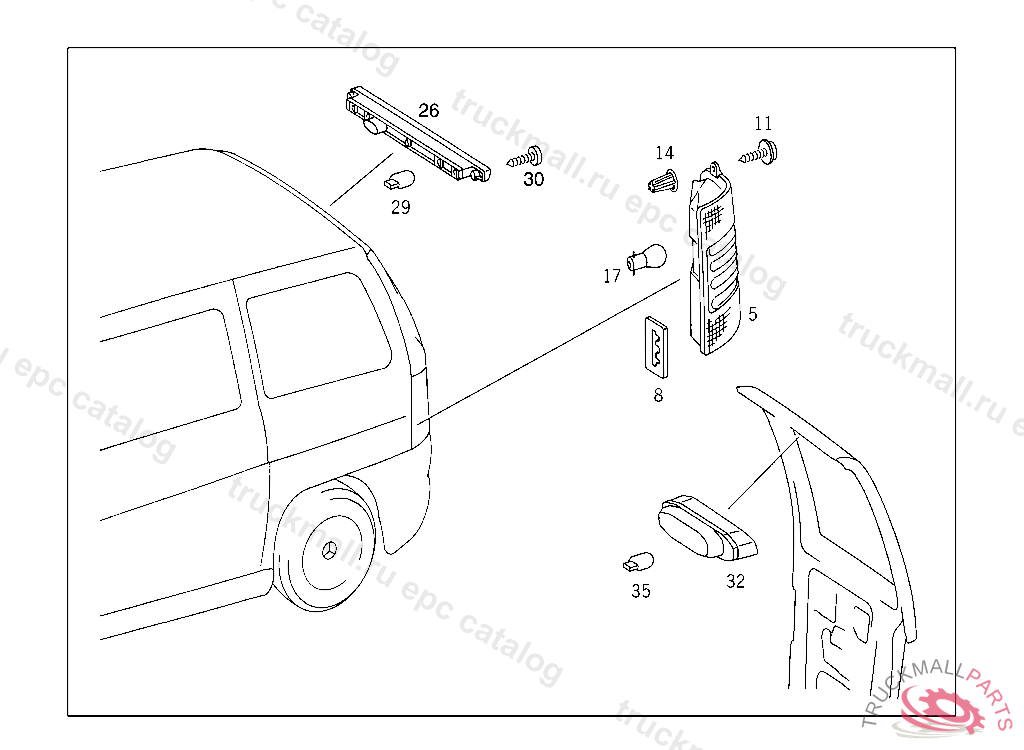

82 ELECTRICAL SYSTEM - 370 TAIL LAM,STOP LAMP

Поз.
Артикул
Описание
5
A6388201964
5
A6388201264
TAIL LAMP LEFT
5
A6388201464
5
A6388201764
TAIL LAMP RIGHT
8
A0008262358
SEAL
11
N914032004223
COMBINATION BOLT TAIL LAMP TO BODY 4.8X16
14
A6389941045
LOCK TAIL LAMP TO BODY
17
N400809000000
BULB ORANGE, TO BLINKER LIGHT USED WITH BICHROMATIC TAIL LAMP RL 12V/21W, C 020765 ALSO INSTALLED ON B 891779 - C 020763 J 016477 ALSO INSTALLED ON J 011134 - J 016475 WITH CODE 859 RSA FROM IDENT-NO.: C 013142 / J 016700
17
N072601012190
BULB12 V
17
N072601012210
BULB12V21/5W
26
A6388200156
29
N000000001359
BULB ADDITIONAL STOP LIGHT
30
A0019845829
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
