Mercedes A6380008099 - ELEKTRISCHE LEITUNG

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 TO IDENT-NR. 246705

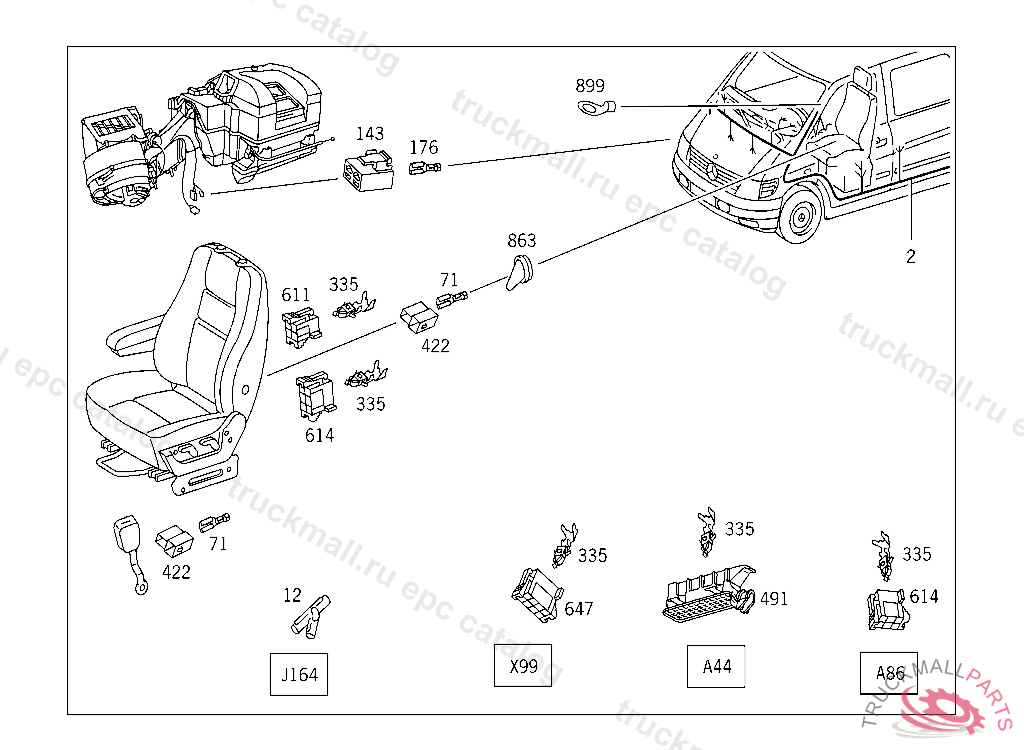

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 136 FRONT END MAIN CABLE HARNESS IL. 1

Поз.
Артикул
Описание
2
A6380007599
2
A6380008099
12
A6010780245
BRANCH-OFF FITTING INCREASE IN TRANSMISSION SHIFT POINT & 2 SELECTION PROGRAMS, F 140421 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM F 140422 WITH CODE 806
71
A0085450426
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 0.5-1.0 MM2
71
A0065454426
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 1.0-2.5 MM2
71
A0015453126
PIN BUSHING LESS DETENT 4.0-6.0 MM2
71
A0075458426
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
143
A0065450026
RELAY-SOCKET FRONT END BLOWER ROTARY SWITCH 2-POLIG
176
A0065455026
FLAT PIN BUSHING. PIN BUSHING9,5 MM
335
A0115458026
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
335
A0115458126
CONTACT SPRING0.5-1.0 MM2
422
A0015458728
PIN BUSHING HOUSING BIPOLAR
491
A0165458728
PIN BUSHING HOUSING CONTROL UNIT EDW
611
A6555450128
PIN BUSHING HOUSING 4-POLE
614
A6555450228
PIN BUSHING HOUSING 6-POLE
647
A6555452828
PIN BUSHING HOUSING 8-POLE
863
A6319971781
GROMMET ELECTRIC CABLE
899
N046234006005
CABLE SHOE6 - 25 MM
