Mercedes A6388312545 - КАНАЛ

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 TO IDENT-NR. 246705

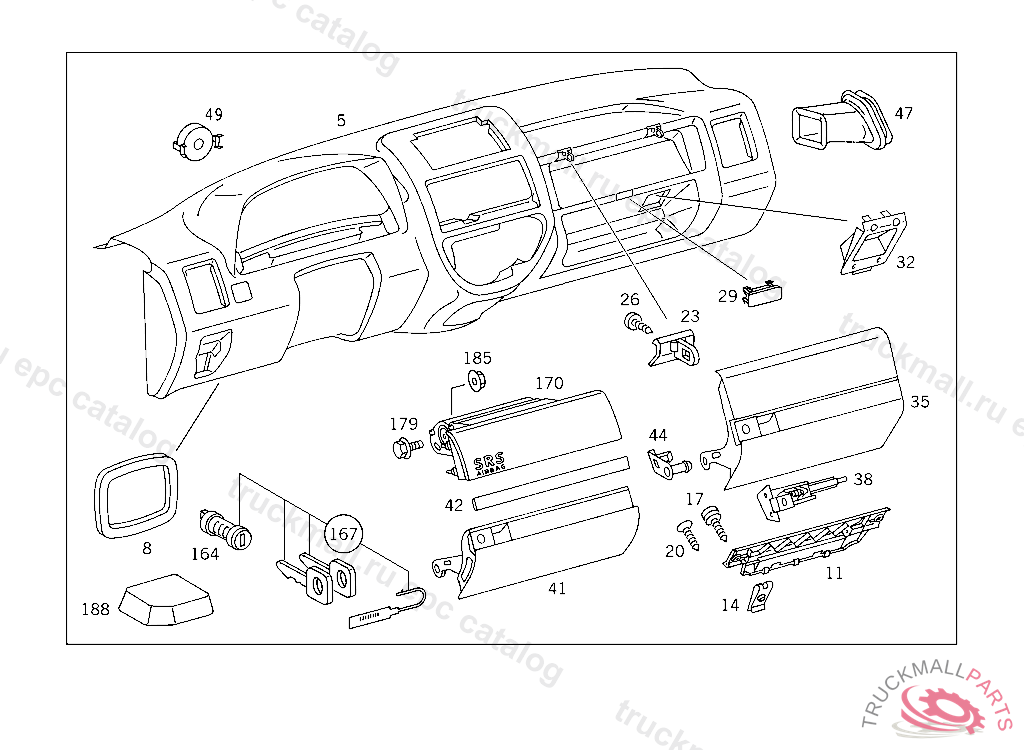

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 1

Поз.
Артикул
Описание
5
A6386807187
5
A6386805988
5
A6386806987
INSTRUMENT PANEL V CLASS,185836NO.7C52I NO.8F63IIIIIII
5
A6386806088
8
A6388310198
SEAL
11
A6386890108
COVERING ,NO.7C52I NO.8F63IIIIIII
14
A6389940745
LOCK
17
N000000000522
SHEET METAL SCREW BRACKET TO SUPPORT
20
N007982004266
SHEET METAL SCREW
32
A6386890514
BRACKET ,NO.7C52I NO.8F63IIIIIII
41
A6386890883
COVER PIGEON HOLE,ONLY WITH AIRBAG "TREND",NO.7C52I NO.8F63IIIIIII
41
A6386891583
41
A6386891683
41
A6386890783
42
A6386830624
42
A6386830524
44
A6386890051
HINGE PIN
47
A6388312545
DUCT LEFT
47
A6388312645
DUCT RIGHT
49
A6384630052
SPACER WASHER MOUNTING OF INSTRUMENT PANEL
164
A6386890101
TUMBLER. LOCK , THEFT-RELEVANT PART
167
A6386890201
TUMBLER WORKSHOP VERSION,WITH KEY, ANY LOCK
170
A6388600402
AIR BAG CO-DRIVER,185836NO.7C52I NO.8F63IIIIIII
170
A6388600502
179
N914007006016
COMBINATION BOLT , Replaced By: N304017006020, +001N000125006421
179
N910105006002
HEXAGON HEAD BOLT
185
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
188
A6386840129
PAD AIRBAG UNIT STYROPOR
999
A6386880535
