Mercedes B66848911 - Ус-во прицепное

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 TO IDENT-NR. 246705

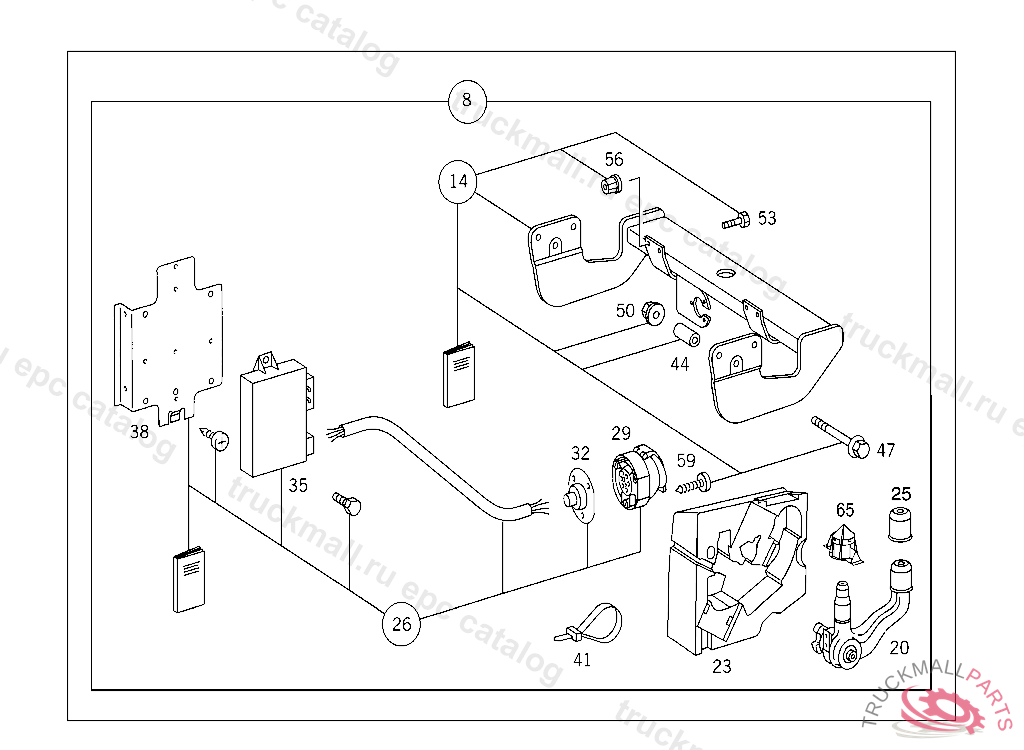

31 FRAME - 420 TRAILER COUPLING IL. 2

Поз.
Артикул
Описание
8
B66848911
TRAILER COUPLING WITH DETACHABLE BALL HEAD
8
A0003100546
CROSS MEMBER , Replaced By: B66848911
14
A0003100746
CROSS MEMBER
20
A6383150799
TRAILER COUPLING
23
A6383150340
BRACKET ON SIDE PANEL
25
A0003150829
CAP
26
A0025401381
PLUG SOCKET SCOPE OF DELIVERY,ELECTRIC SET
29
A0005406481
PLUG SOCKET 13-POLE
32
A1249972381
GROMMET , Replaced By: A0005455480
35
A0115459532
CONTROL UNIT
38
A6385450940
BRACKET HEATED REAR WINDOW PANE RELAY
41
A0019978390
LOOM TIE LINE MOUNTING 280 MM
44
A3183170053
SPACER TUBE LEAF SPRING TO CONSOLE AT CAB
44
A6389910140
SPACER TUBE , Replaced By: A3183170053
47
N910105012030
HEXAGON HEAD BOLT TRANSMISSION CASE FRONT PART TO REAR PART M12X100
50
N913023012004
NUT BRACKET TO SIDE MEMBER
50
N910112012002
NUT. HEXAGON NUT STRAP TO CONSOLE M12X1.5
53
N910106008012
SCREW BEARING BRACKET TO FIRE WALL
56
A6389840221
RIVETED NUT TYRE INFLATION COMPRESSOR
59
N007981004357
SHEET METAL SCREW PLUG SOCKET TO BRACKET
65
A0003151567
CAP FOR CLOSING THE RECEPTACLE WITH REMOVED BALL HEAD, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
