Mercedes A6385407709 - ПРОВОДА-LEITUNGSSATZ-MB

V 200 CDI, V 220 CDI, V 200, V 230, V 280 638.294 TO IDENT-NR. 246705

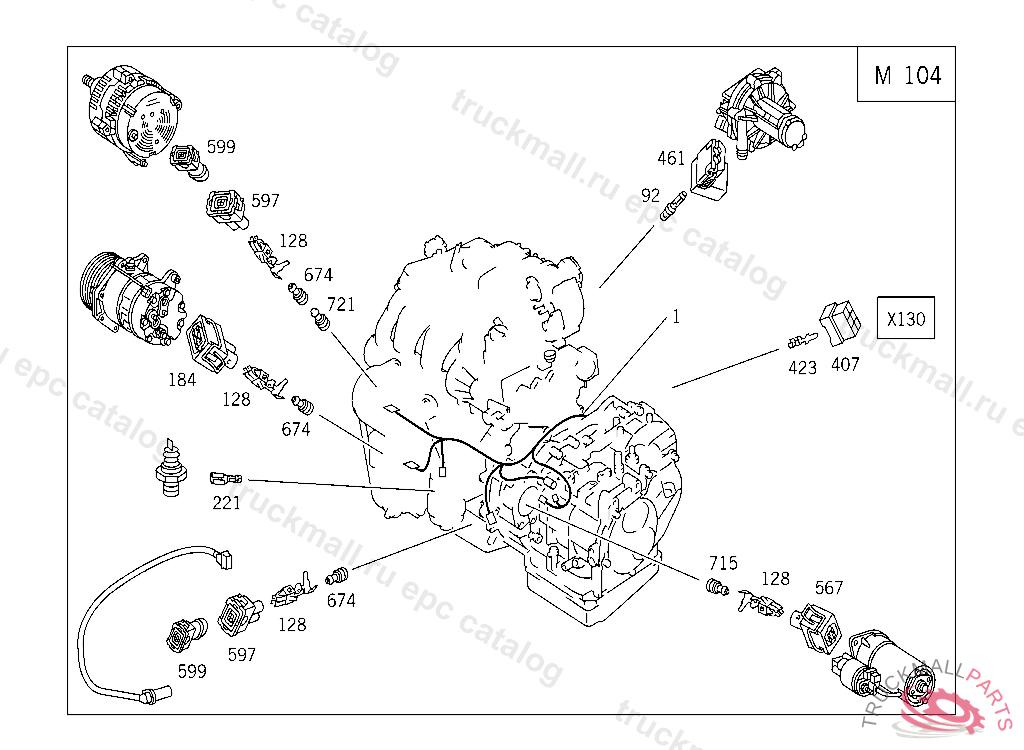

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 117 ENGINE CABLE HARNESS GASOLINE VEHICLES IL. 1

Поз.
Артикул
Описание
1
A6385407709
92
A0035452626
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
128
A0055456826
CONTACT SPRINGTO 657 540 50 10
184
A0075451626
PIN BUSHING HOUSING. PLUG SOCKET BIPOLAR TO 657 540 50 10
221
A0075458426
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
407
A0015456028
PLUG HOUSING 6-POLE
423
A0025450628
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
461
A0115457128
PIN BUSHING HOUSING BIPOLAR
567
A0335458328
PLUG HOUSING UNIPOLAR
597
A1405454428
PIN BUSHING HOUSING BIPOLAR
599
A1405453528
PLUG INJECTION VALVE
674
A0005452839
WIRE SEAL
674
A0005452939
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
715
A0005454780
GASKET WITHE 8 MM
715
A0005454680
GASKET LIGHT BLUE 8 MM
721
A0005456080
GASKETTO 029 545 75 28, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
721
A0005456280
GASKET. BLIND PLUG
