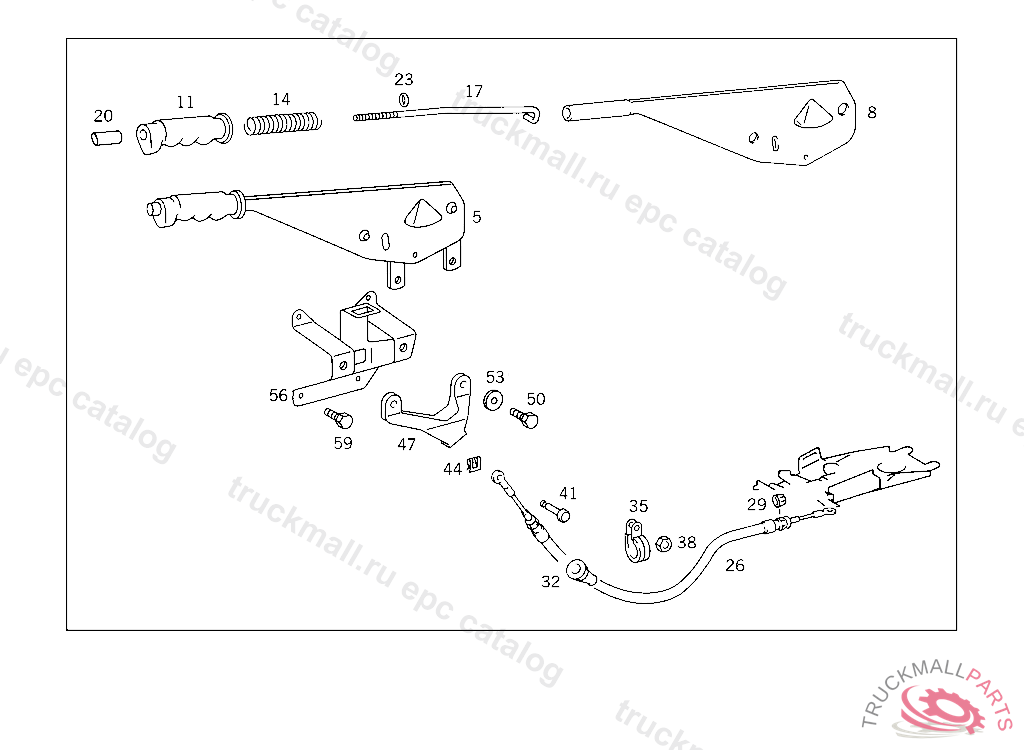

V 200 CDI, V 220 CDI, V 200, V 230, V 280 - 638.294 TO IDENT-NR. 246705 - 42 BRAKES
Поз.
Артикул
Описание
5
8
11
HANDLE HAND BRAKE LEVER
14
SPRING HAND BRAKE LEVER
17
ROD HAND BRAKE LEVER
20
FASTENER BUTTON HAND BRAKE LEVER
23
SEAL RING HAND BRAKE LEVER
26
26
BRAKE CABLE
29
CLAMPING PIECE
32
GROMMET
35
CLAMP OIL LINE TO BRACKET
35
38
NUT SPRING-LOADED PUSH ROD
38
NUT PUMP TO BRACKET
41
44
CLIP CABLE TO BRACKET,5 318121
47
50
SCREW OIL PAN TO CYLINDER CRANKCASE M8X80,977282
53
56
59
