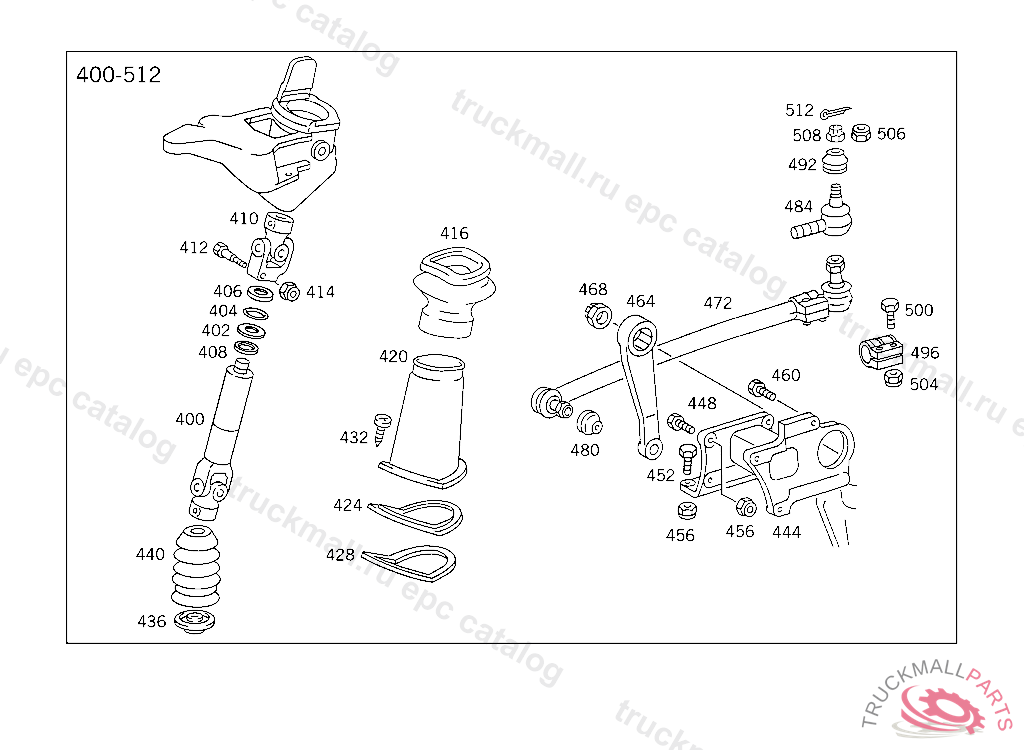

Поз.
Артикул
Описание
400
STEERING SHAFT , Replaced By: A6554600809
400
STEERING SHAFT
400
STEERING SHAFT
410
UNIVERSAL JOINT ,5 463985, Replaced By: A0004600057, +002A3819900114
410
UNIVERSAL JOINT ,5 463985
410
UNIVERSAL JOINT , Replaced By: A0004600157, +002A3819900114
410
UNIVERSAL JOINT ,5 463985
412
SCREW STEERING SHAFT TO STEERING M 8X42
412
SCREW STEERING SHAFT TO STEERING M 8X42
412
SCREW UNIVERSAL JOINT TO STEERING COLUMN M 8X38,5 463984
414
NUT STRAP TO BRACKET
414
NUT STRAP TO BRACKET
416
BOOT STEERING COLUMN COVERING,TOP, NO.8316INO.7C52INO.7B90INO.9051I II I
420
PROTECTIVE SLEEVE PROTECTIVE SLEEVE TO CAB FLOOR
424
REINFORCEMENT PROTECTIVE SLEEVE TO CAB FLOOR
428
GASKET PROTECTIVE SLEEVE TO CAB FLOOR
432
SHEET METAL SCREW , Replaced By: N007981005321
432
SHEET METAL SCREW BOOT TO CAB FLOOR
436
WASHER UNIVERSAL JOINT COVERING
440
BOOT UNIVERSAL JOINT COVERING, NO.8316INO.7C52INO.7B90INO.9051I II I
444
STEERING SUPPORT AT FRAME
444
STEERING SUPPORT AT FRAME
448
SCREW STEERING SUPPORT TO FRAME M 14X55
452
SCREW STEERING SUPPORT TO FRAME M 14X50
456
NUT , Replaced By: N910113014000
456
NUT STEERING SUPPORT TO FRAME
460
SCREW , Replaced By: N308676016006
460
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
464
PITMAN ARM
468
NUT PITMAN ARM TO STEERING BOX ASSEMBLY,5 386585
468
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
472
DRAG LINK , Replaced By: A6204602805
472
DRAG LINKLEMFOERDER
472
DRAG LINK , Replaced By: A6204603705
472
DRAG LINKEHRENREICH
472
DRAG LINK , Replaced By: A6204603805
472
DRAG LINKLEMFOERDER
472
DRAG LINK , Replaced By: A6204603905
472
DRAG LINKEHRENREICH
480
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
480
BOOT DRAG LINK
484
DRAG LINK END , Replaced By: A0004602848
484
DRAG LINK END , Replaced By: A0014600848
484
DRAG LINK END , Replaced By: A0014602248
484
DRAG LINK END , Replaced By: A0014607748
484
DRAG LINK END , Replaced By: A0004602948
484
DRAG LINK END , Replaced By: A0014601248, +001A0019905451
484
DRAG LINK END , Replaced By: A0014602248
484
DRAG LINK END , Replaced By: A0014607748
492
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004621796
492
BOOT DRAG LINK
496
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
496
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
500
SCREW ,5 903514, Replaced By: N000960012353
500
SCREW TORSION BAR TO SHACKLE,5 903514
504
NUT , Replaced By: N910113012003
504
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
506
NUT DRAG LINK END M 24X1.5
508
NUT , Replaced By: N000937024002
508
NUT DRAG LINK TO LEVER
512
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
NUT , Replaced By: N910113010000
999
NUT STRAP TO BRACKET
999
BRACKET FUEL LINES TO TRANSMISSION
999
BRACKET DELIVERY AND SUCTION LINES TO FRAME
999
PROTECTIVE CAP
