Mercedes N000931010268 - SCHRAUBE M 10 X 70

1222 650.036

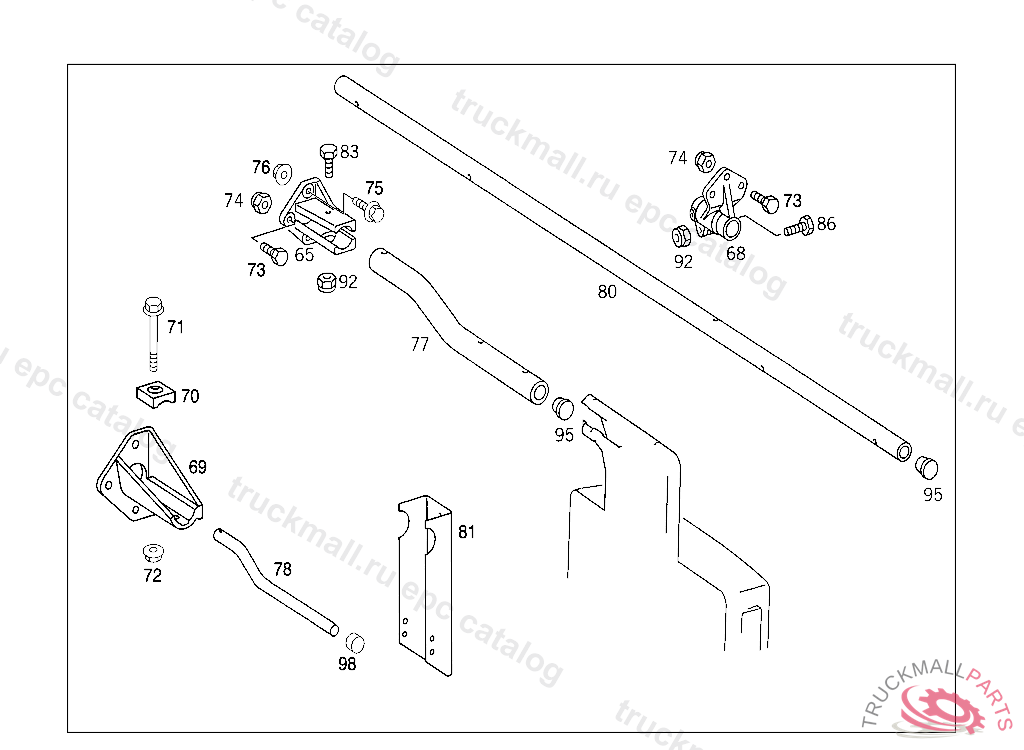

52 SHEET METAL,AIR INTAKE - 060 FENDER FIXTURE IL. 2

Поз.
Артикул
Описание
65
A6555220092
BEARING BRACKET TAIL LAMP, FOR USE WITH SHORT MERCEDES-BENZ CAB
73
N000933010145
SCREW REAR EXHAUST PIPE TO MUFFLER
74
N910113010000
NUT STRAP TO BRACKET
74
N913004010008
NUT , Replaced By: N910113010000
77
A6525220440
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6525221640
77
A6525220340
BRACKET , Replaced By: A6525221640
77
A6525221640
BRACKET TAIL LAMP
83
N000931010268
SCREW , Replaced By: N304017010050
83
N304017010050
SCREW , Replaced By: N304017010055
92
N913004010008
NUT , Replaced By: N910113010000
92
N910113010000
NUT STRAP TO BRACKET
95
A0009970620
EXPANSION PLUG BRACKET
