Поз.
Артикул
Описание

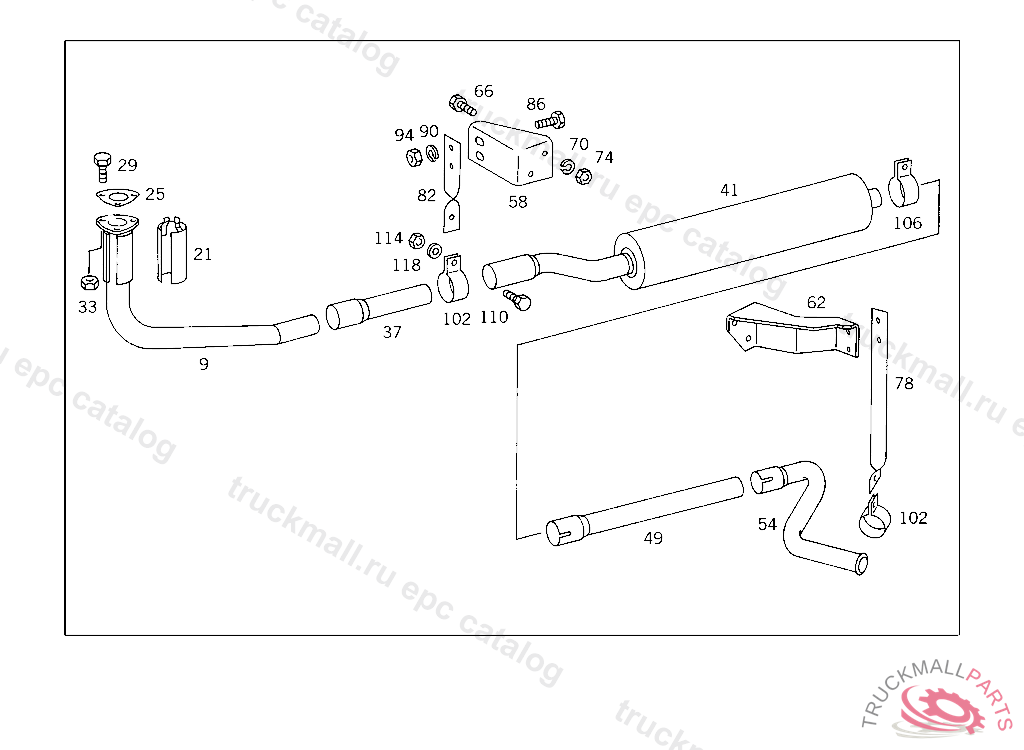

9
EXHAUST PIPE FRONT
21
PROTECTIVE PLATE (HEAT SHIELD)
25
FLANGE GASKET , Replaced By: A4424920080
25
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
29
HEX. HEAD. SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
33
NUT STRAP TO SUPPORT,5 149419
37
CONNECTOR
58
SUPPORT EXHAUST PIPE,588185
66
SCREW , Replaced By: N304017008034
70
LOCK WASHER
74
NUT LEVER TO SHIFTING SHAFT
82
BRACKET EXHAUST PIPE, UP TO IDENT NO. 872788 EXCEPT FOR 500033-599999
86
SCREW
90
LOCK WASHER
94
NUT LEVER TO SHIFTING SHAFT
106
CLAMP , UP TO CHASSIS A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
106
CLAMP REAR EXHAUST PIPE TO SUPPORT,D 250888
106
CLAMP
110
SCREW , Replaced By: N304017008034
114
NUT LEVER TO SHIFTING SHAFT
118
WASHER A 8,4 DIN 9021. WASHER MOUNTING TO SUBSTRUCTURE
999
WASHER
999
SUPPORT REAR EXHAUST PIPE
