Главная
›
Mercedes
›
TRUCK
›
LK 1518
›
351.332
›
42 BRAKES
›

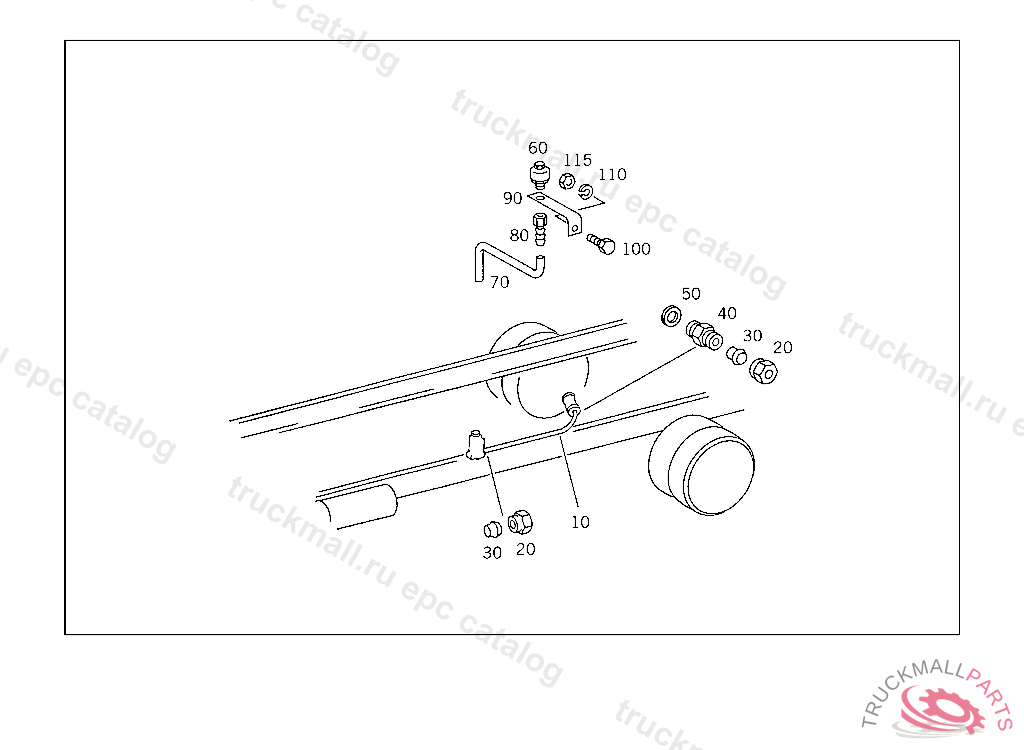

001 BRAKES IL. 21
Mercedes N007603012112 - КОЛЬЦО УПЛОТНИТ
LK 1518 351.332
42 BRAKES - 001 BRAKES IL. 21
Поз.
Артикул
Описание
10
A3523500479
HOSE FROM THREE-WAY VALVE TO COMPRESSED AIR CYLINDER
20
N915017008100
UNION NUT LINE CONNECTION
30
N003861008005
GLAND LINE CONNECTION
40
N003901008001
SCREW-IN FITTING LINE CONNECTION
50
N007603012112
SEAL RING
60
A1112600058
BREATHER TRANSFER CASE
70
A3449977582
HOSE , Replaced By: A3769978182
80
A3513517065
FITTING ,A 069205
90
A3513517040
BRACKET BRAKE LINE COUPLING TO REAR CROSS MEMBER
100
N000933008274
BOLT. SCREW QUICK-RELEASE VALVE TO BRACKET
110
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
120
N000934008045
NUT TAIL LAMP TO BRACKET
