Поз.
Артикул
Описание

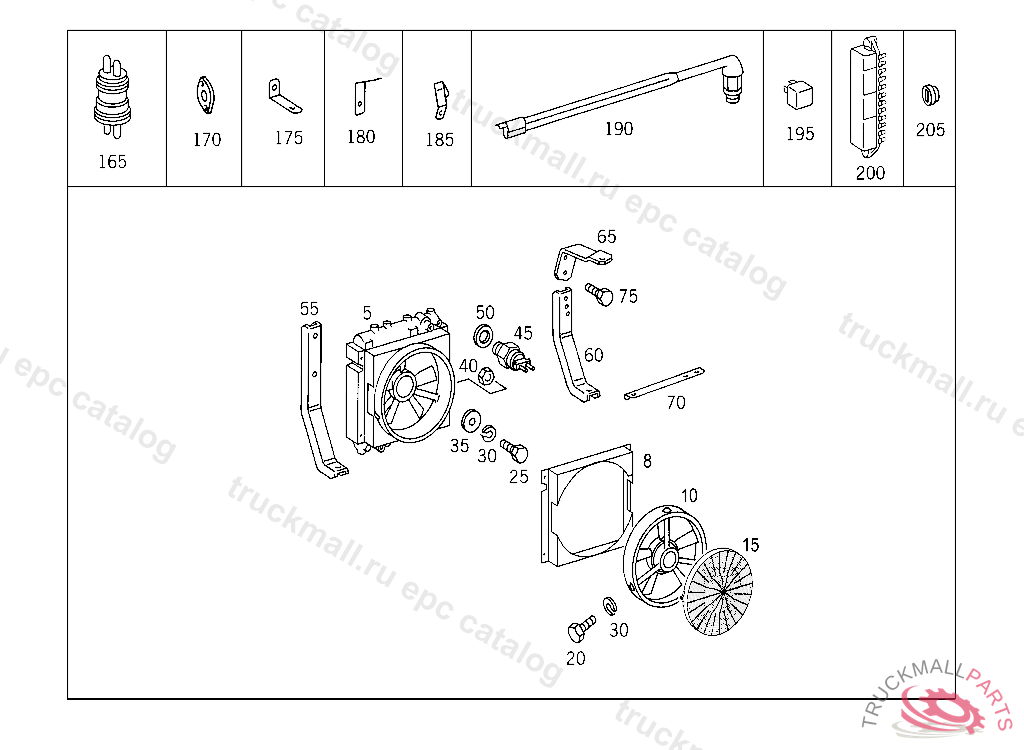

5
RADIATOR TRANSMISSION OIL COOLER
8
FAN SHROUD , FROM IDENT NO. 5 274832 ALSO INSTALLED ON 5 264779, 5 268469
10
BLOWER
15
PROTECTIVE GRILL , FROM IDENT NO. 5 274832 ALSO INSTALLED ON 5 264779, 5 268469
20
SCREW , Replaced By: N304017006018
20
SCREW COVER PLATE TO COVER PLATE M 6 X 12
25
SCREW COVER PLATE TO BRACKET
30
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
35
WASHER , Replaced By: N009021006208
35
WASHER COMPRESSED AIR LINE TO BRACKET
40
NUT BALL PIVOT TO LEVER
45
THERMO-SWITCH OIL COOLER, FROM IDENT NO. 5 274832 ALSO INSTALLED ON 5 264779, 5 268469
50
SEAL RING FUEL LINE TO FEED PUMP
55
SUPPORT OIL COOLER TO FRAME, FROM IDENT NO. 5 274832 ALSO INSTALLED ON 5 264779, 5 268469
60
SUPPORT OIL COOLER TO FRAME
65
BRACKET OIL COOLER
70
SUPPORT OIL COOLER TO BRACKET
75
SCREW BRACKET TO TRANSMISSION
165
PLUG
170
FLANGE (BLIND FLANGE)
175
BRACKET OIL LINES TO FRAME SIDE MEMBERS
180
BRACKET OIL LINE TO CROSS MEMBER
185
BRACKET FEED AND RETURN LINES TO FRAME,FRONT
190
SWITCH DECLUTCHING START UNIT
195
RELAYA33
195
RELAYA33, Replaced By: A0009822123
200
FUSE BOX
205
PLUG (NEUTRAL SAFETY SWITCH)
