Поз.
Артикул
Описание

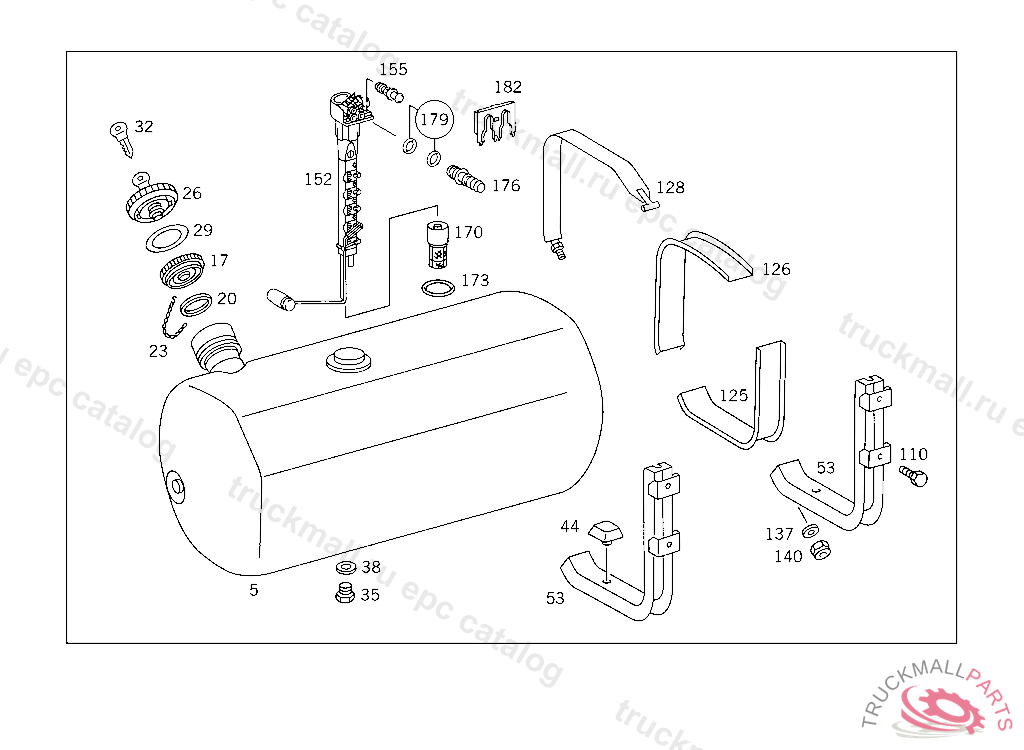

5
FUEL TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A6524700101, +001A0005409917, +001A0115426017
5
FUEL TANK ,K 169123, Replaced By: A6704700101
5
FUEL TANK125 L,K 169123
17
FILLER CAP , Replaced By: A0004700305
17
FILLER CAP
20
SEAL RING
23
CHAIN FILLER CAP
26
FILLER CAP , Replaced By: A0004718430
26
FILLER CAP LESS BREATHING
26
FILLER CAP LESS BREATHING
29
SEAL RING , Replaced By: A3049970340
29
SEAL RING
32
KEYTO 000 471 67 30, STATE LOCK NUMBER WHEN ORDERING
35
SCREW PLUG , Replaced By: N007604014110
35
SCREW PLUG FUEL TANK
38
SEAL RING FUEL LINE TO FEED PUMP
53
SUPPORT FUEL TANK,FRONT AND REAR,5 761839
53
SUPPORT FUEL TANK
110
SCREW , Replaced By: N308676014020
110
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
110
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
125
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
126
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
128
STRAP FUEL TANK TO SUPPORT
137
WASHER
140
NUT SUPPORT TO SIDE MEMBER
152
SENDER UNIT ,K 169122K 169123, Replaced By: A0085428917, +001A3529870045
152
SENDER UNIT FUEL GAUGE,K 169123
155
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
170
FUEL STRAINER FUEL TANK,K 169122
170
FUEL STRAINER FUEL TANK,K 169123
173
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
176
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
176
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
176
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
179
GASKET KIT CONNECTION ON FUEL GAUGE SENSOR
182
LOCK FUEL GAUGE SENDER UNIT CONNECTION
