Поз.
Артикул
Описание

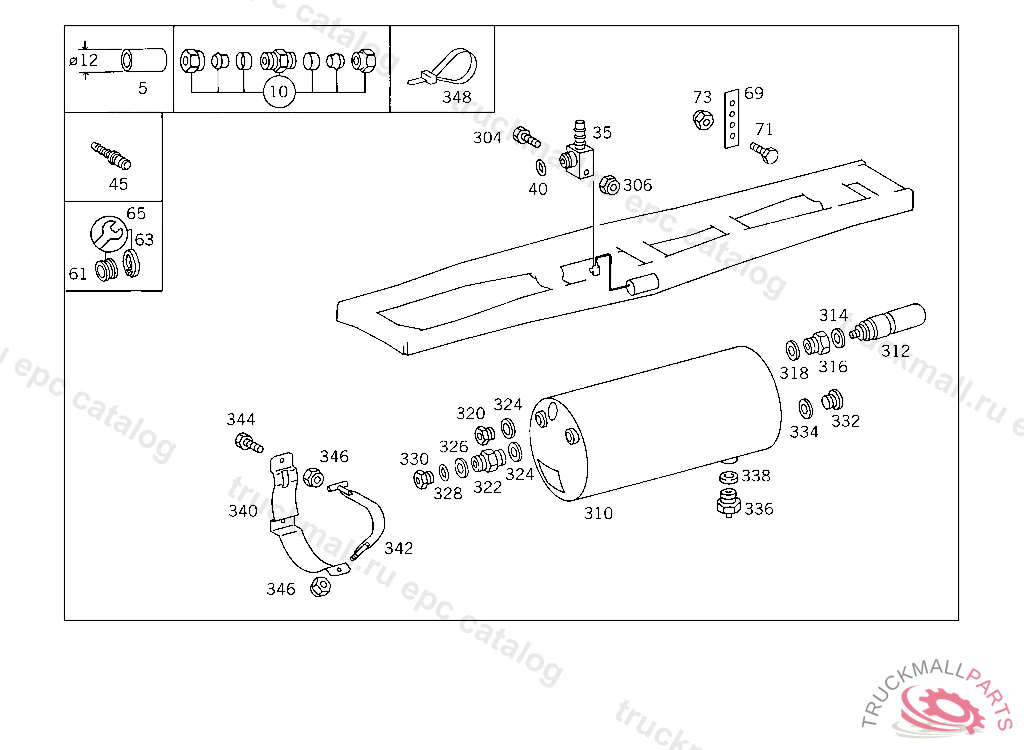

5
HOSE , Replaced By: A0009872827
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
10
FITTING , Replaced By: A0029906171
10
FITTING (PARTS KIT),LINE RUPTURE
35
CONNECTOR , Replaced By: A0019904078
35
CONNECTOR RELEASE BEARING LUBRICATION
40
SEAL RING , Replaced By: A0229973948
40
SEAL RING CONNECTOR 11.8X2 MM
45
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
45
CONNECTOR HOSE WIDTH, 6 MM, TO M22
45
CONNECTOR , Replaced By: A0029905478
45
CONNECTOR HOSE WIDTH, 6 MM,TO M16
45
CONNECTOR HOSE WIDTH, 6 MM,TO M16
45
CONNECTOR HOSE WIDTH, 6 MM,TO M16
45
CONNECTOR , Replaced By: A0029905378
45
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
61
LOCK RING LINE CONNECTION
61
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
61
SEAL RING , Replaced By: A0009940747
63
LOCK LINE CONNECTION
63
LOCK , Replaced By: A0009945448
63
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
65
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
65
REPAIR KIT , Replaced By: A0309971748
65
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
69
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
69
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
69
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
71
SCREW PIPE CLAMP
71
SCREW PIPE CLAMP
71
SCREW PIPE CLAMP
71
SCREW , Replaced By: N304017008021
73
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
73
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
73
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
73
NUT , Replaced By: N913004008001
304
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
306
NUT , Replaced By: N913004006001
306
NUT PUMP TO BRACKET
310
RESERVOIR , Replaced By: A0034321201
310
RESERVOIR20L,246 MM,12.5 BAR
310
RESERVOIR40L,276 MM,8.5 BAR
310
RESERVOIR , Replaced By: A0024320201
310
RESERVOIR ,5 934167, Replaced By: A0034321801
310
RESERVOIR30L,246 MM,12.5 BAR
310
RESERVOIR , Replaced By: A0034321201
310
RESERVOIR20L,246 MM,12.5 BAR
312
VALVE , Replaced By: A0044297344
312
VALVE , Replaced By: A0054290244
312
SAFETY VALVE. VALVE PRESSURE RELIEF, REPAIR IMPOSSIBLE
312
SAFETY VALVE. VALVE PRESSURE RELIEF, REPAIR IMPOSSIBLE
314
SEAL RING VALVE TO VALVE,K 025179
314
SEAL RING VALVE TO VALVE,K 025179
314
SEAL RING VALVE TO VALVE,K 025179
316
FITTING OVERFLOW VALVE,CONNECTION: "10",K 025179
316
FITTING OVERFLOW VALVE,CONNECTION: "10",K 025179
316
FITTING OVERFLOW VALVE,CONNECTION: "10",K 025179
318
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
318
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
318
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
318
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
320
FITTING LINE CONNECTION
320
FITTING LINE CONNECTION
320
FITTING LINE CONNECTION
320
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
320
FITTING AIR RESERVOIR,CONNECTION: "35"
322
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
322
FITTING AIR RESERVOIR,CONNECTION: "26", NOT USED
324
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
324
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
326
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
326
THRUST RING CHECK VALVE TO AIR RESERVOIR
326
THRUST RING CHECK VALVE TO AIR RESERVOIR
328
O-RING CHECK VALVE TO AIR RESERVOIR
328
O-RING CHECK VALVE TO AIR RESERVOIR
330
SCREW. UNION SCREW LINE CONNECTION
330
SCREW. UNION SCREW LINE CONNECTION
330
SCREW. UNION SCREW LINE CONNECTION
330
SCREW. UNION SCREW , Replaced By: A0009973734
330
SCREW. UNION SCREW , Replaced By: A0009973734
330
SCREW. UNION SCREW LINE CONNECTION
330
SCREW. UNION SCREW LINE CONNECTION
330
SCREW. UNION SCREW LINE CONNECTION
330
SCREW. UNION SCREW LINE CONNECTION
332
SCREW PLUG , Replaced By: N000908022011
332
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
332
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
334
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
334
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
336
VALVE DRAIN, Replaced By: A0004322407
336
VALVE DRAIN, Replaced By: A0004322107
336
VALVE. DRAIN VALVE DRAIN
336
VALVE. DRAIN VALVE DRAIN
336
VALVE DRAIN, Replaced By: A0004322107
338
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
340
BRACKET AIR RESERVOIR TO FRAME
340
BRACKET AIR RESERVOIR
340
BRACKET AIR RESERVOIR
342
STRAP AIR RESERVOIR TO BRACKET
342
STRAP AIR RESERVOIR TO BRACKET
342
STRAP AIR RESERVOIR TO BRACKET
344
SCREW END PIECE TO EXHAUST PIPE M 10X25
344
SCREW SUPPORT TO CROSS MEMBER M 10X28
346
NUT , Replaced By: N910113010000
346
NUT STRAP TO BRACKET
346
NUT STRAP TO BRACKET
346
NUT STRAP TO BRACKET
348
LOOM TIE LINE MOUNTING 280 MM
348
LOOM TIE LINE MOUNTING 280 MM
999
BALL JOINT TRAVEL SENSOR
999
BALL JOINT LEFT-HAND THREAD,BALL DIAMETER 10 MM
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM / 6 MM, VOSS 230
999
AIR CLEANER
999
MAGNET ,5 760168K 154651
999
MAGNET
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
PLASTIC PIPE AERATION, ORDER BY THE METER
999
PROTECTIVE CAPWABCO
999
VALVE CONTROL VALVE GRAU
999
VALVE , Replaced By: A0025400197
999
SCREW , Replaced By: N304017006018
999
FITTING PRESSURE REGULATOR,CONNECTION: "40"
999
T-FITTING HOSE WIDTH, 6 MM
999
VALVE (PRESSURE LIMIT VALVE)
999
VALVE ,5 760167, Replaced By: A0025400897
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION,5 9363665 812731
999
ELBOW FITTING. T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 / 12 MM, VOSS 230
999
GROMMET AT SIDE MEMBER,5 314333
999
BRACKET , Replaced By: A3604293140
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: A3609902340
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO 008 997 90 82
999
ROD , Replaced By: A0003290930, +001A0003291030, +001N304032008006, +001N304032008007, +001N900331008427
999
ROD , Replaced By: A0003290930, +001A0003291030, +001N304032008006, +001N304032008007, +001N900331008427
999
ROD ,K 166016, Replaced By: A0003290930, +001A0003291030, +001N304032008006, +001N304032008007, +001N900331008427
999
ROD , Replaced By: A6533201089
999
ROD , Replaced By: A6533200389
999
ROD , Replaced By: A6533200589
999
BRACKET , Replaced By: A3464310240
999
BRACKET , Replaced By: A3464310240
999
BRACKET TRAVEL SENSOR TO FRAME SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET COMPRESSED AIR LINE MOUNTING, SIMPLE PART-PLEASE HAVE SHOP MADE
999
BRACKET QUICK-RELEASE VALVE
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
GROMMET HIGH PRESSURE HOSE THRU FRAME
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
999
SCREW , Replaced By: N304017008053
999
SEAL RING LINE CONNECTION
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SCREW PLUGROCKINGER,TYP 59 U150
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
999
NUT
999
NUT BALL SOCKET TO ROD
999
PULL ROD REAR AXLE SELF-LEVELLING DEVICE
999
PULL ROD PNEUMATIC SUSPENSION CONTROL
999
NUT , Replaced By: N913023010002
999
HEXALOBULAR BOLT TRAVEL SENSOR TO BRACKET,K 186868
999
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
999
HOLLOW SCREW HEATING CONNECTION
999
FITTING LINE CONNECTION TO FIRE WALL,5 726664
